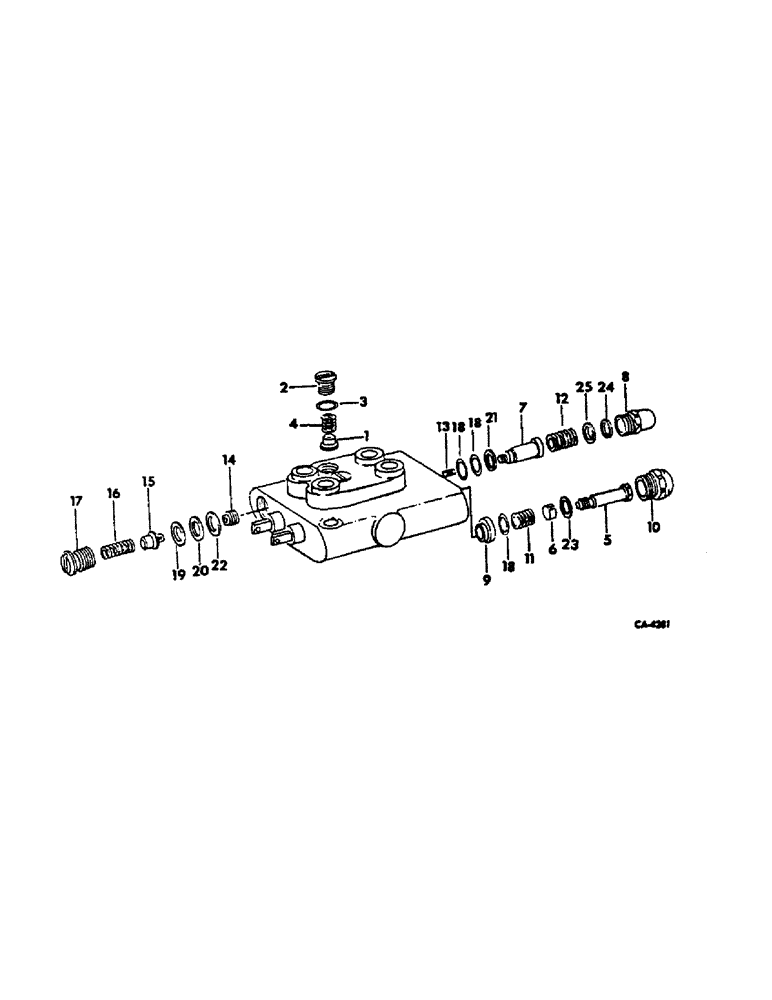

Запчасти Case IH 1050A (D-6) - 1050A LOADER, CONTROL VALVE ASSEMBLY

544701R91

VALVE ASSY, control

1шт.

1

673622R1

PLUNGER

lift check

2шт.

2

673623R1

PLUG, check

2шт.

3

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

2шт.

4

673625R1

SPRING

lift check

2шт.

5

674491R1

SCREW

spool

1шт.

6

674492R1

SPACER

spool

1шт.

7

56194C1

CAP ASSY, detent

1шт.

8

56193C1

SCREW, spool detent

1шт.

9

674775R1

BUSHING

2шт.

10

674493R91

CAP

ASSY

1шт.

11

674490R1

SPRING

spool center

1шт.

12

56195C1

SPRING, spool center

1шт.

13

201737C1

SPRING

detent

1шт.

14

674543R1

SEAT, relief valve

1шт.

15

152776C1

VALVE POPPET

POPPET, relief valve

1шт.

16

394654R2

SPRING

orange

1шт.

17

547183R1

PLUG

relief valve

1шт.

18

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

4шт.

19

674504R1

WASHER

.015

1шт.

20

394655R1

WASHER

.010

1шт.

21

56196C1

WASHER, .046

1шт.

22

673647R1

WASHER

.035

1шт.

23

673628R1

WASHER

.065

1шт.

24

824545C1

WASHER

.020

1шт.

25

202649C1

SPRING WASHER

.046

1шт.
