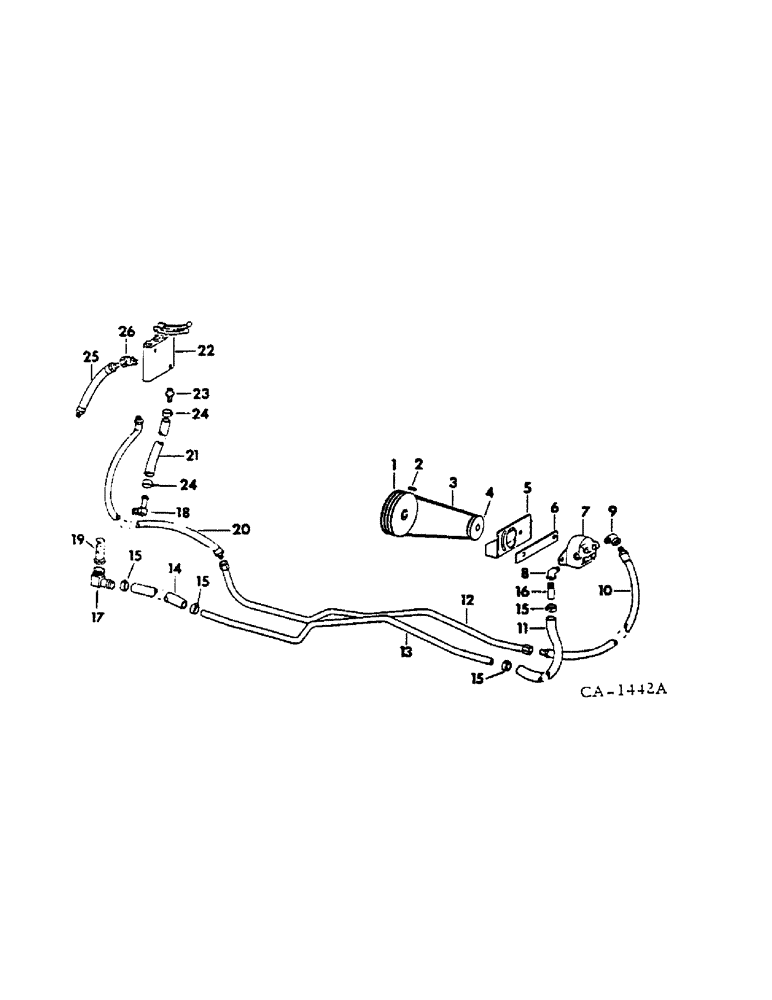

Запчасти Case IH 1050A (D-5) - 1050A LOADER, POWER SUPPLY

1

544598R1

PULLEY, 7-1/2 in.

1шт.

2

545250R1

KEY, 1/8 x 1/8 x 3/4

1шт.

3

545249R1

V-BELT 0.50" W 0.50" W

1шт.

4

545248R1

PULLEY, 4 x 7/16

1шт.

5

544581R1

MOUNTING, pump

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

6

544582R1

SPACER

1шт.

7

544702R91

PUMP ASSY, hydraulic, for components see list of parts under detail of hydr. pump

1шт.

8

444171

ELBOW

1/2-14 automotive 90 deg pipe street

1шт.

9

444168

ELBOW

3/8-18 automotive 90 deg pipe street

1шт.

10

545266R1

HOSE, 3/8 x 18

1шт.

11

HOSE, oil line, use 18 in. of 3/4 in. ID hose from 25 ft roll 526603R1

1шт.

12

544597R1

LINE, oil

1шт.

13

544596R1

LINE, oil

1шт.

14

HOSE, oil line, use 9 in. of 3/4 in. ID hose from 25 ft roll 526603R1

1шт.

15

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

Switch Mounting, 3/4 hose

4шт.

16

528265R1

NIPPLE, 1/2 x 2 tapered

1шт.

17

386623R1

STEM

ELBOW, 3/4-14 NPTF x 90 deg hose

1шт.

18

357483R1

ELBOW, 3/8-18 NPTF x 90 deg hose

1шт.

19

545246R1

SCREEN

1шт.

20

545265R1

HOSE, 3/8 x 12

1шт.

21

HOSE, valve, use 9-1/2 in. of 1/2 in. ID hose from 50 ft roll 526602R1

1шт.

22

544701R91

VALVE ASSY, control, for components see list of parts under detail of control valve

1шт.

470921R91

BREATHER

1шт.

23

545268R1

ADAPTER

FITTING, 3/8 NPTF x 1/2 hose barb str

1шт.

24

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, 1/2 hose

2шт.

25

545264R1

HOSE, 1/4 x 16

4шт.

26

545262R1

ADAPTER, elbow

4шт.

545261R1

ADAPTER, connector

2шт.
