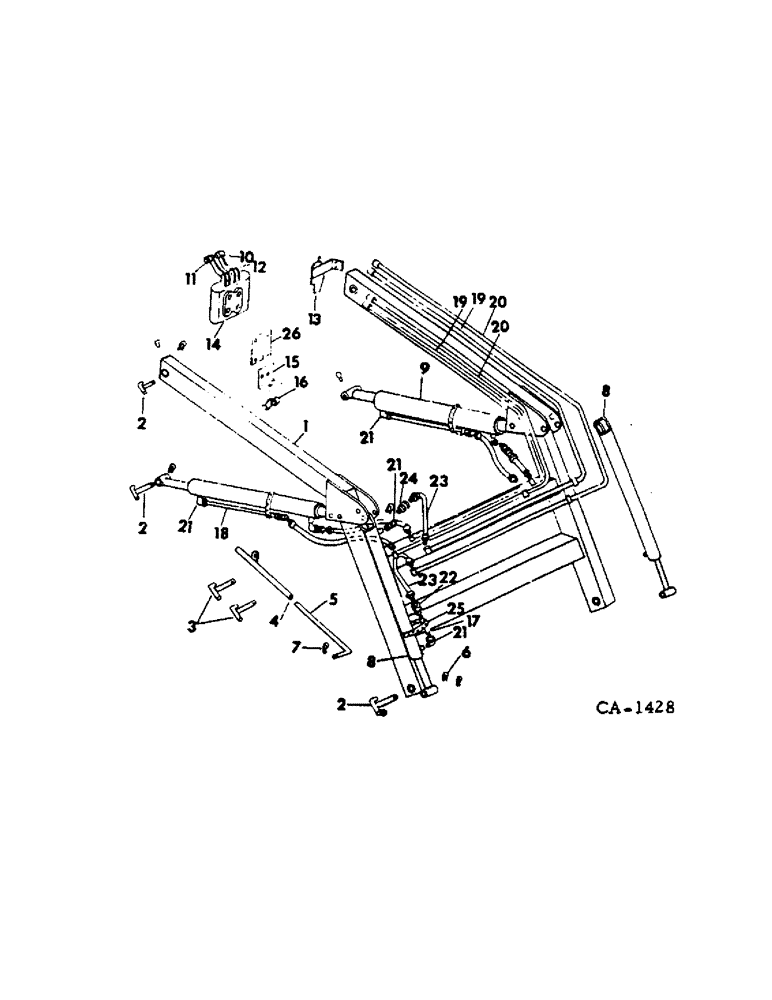

Запчасти Case IH 1050A (D-3) - 1050A LOADER, BOOM, CONTROL VALVE, TUBES AND HOSES
№
Артикул
Название
Примечание
Количество
1
544584R1
FRAME, lift
1шт.
2
544587R1
PIN, 3/4 x 4 hook
8шт.
3
544590R1
PIN, 3/4 x 3-1/4 hook
4шт.
4
544592R1
TUBE, indicator
1шт.
5
544591R1
ROD, indicator
1шт.
6
545254R1
PIN
no. 6 hitch clip
12шт.
7
545255R1
PIN
no. 3 hitch clip
1шт.
8
544589R91
CYLINDER ASSY, tilt, for components see list of parts under details of hydraulic cylinders
2шт.
9
544593R91
CYLINDER ASSY, lift, for components see list of parts under details of hydraulic cylinders
2шт.
10
545256R1
HANDLE, valve LH
1шт.
11
545257R1
HANDLE, valve RH
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
12
545258R1
LINK, diamond
2шт.
13
544583R1
MOUNTING, valve
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
SCREW, 3/8-16 x 1-1/4 znd hex-hd cap
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
121328
SCREW, 1/4-20 x 2 C-Z fil-hd slt mach
2шт.
14
544701R91
VALVE ASSY, control, for components see list of parts under detail of control valve
1шт.
15
544579R1
MOUNTING, oil line
1шт.
16
544580R1
GUIDE, oil line
1шт.
17
544588R1
LINE, tilt return
2шт.
18
544594R1
LINE, lift return
2шт.
19
544585R1
LINE, oil
2шт.
20
544586R1
LINE, oil
2шт.
21
444165
RING
ELBOW, 1/4-18 automotive 90 deg. pipe street
8шт.
22
545259R1
ADAPTER, coupling
4шт.
23
545263R1
HOSE, 1/4 x 13-1/2
8шт.
24
545260R1
ADAPTER
4шт.
25
545267R1
CLAMP, 10 3/4 pipe
4шт.
132282
SCREW, 1/4-20 x 1-1/2 C-Z fil-hd slt mach
4шт.
26
544599R1
PLATE, mounting
1шт.
120376
NUT,5/16"-18, G5
3шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
SCREW, 5/16-18 x 1 znd hex-hd cap
2шт.
18765R1
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2
SCREW, 5/16-18 x 1-1/2 znd hex-hd cap
1шт.
18779R1
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
SCREW, 3/8-16 x 1-1/2 znd hex-hd cap
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
Выбрано товаров: 39
