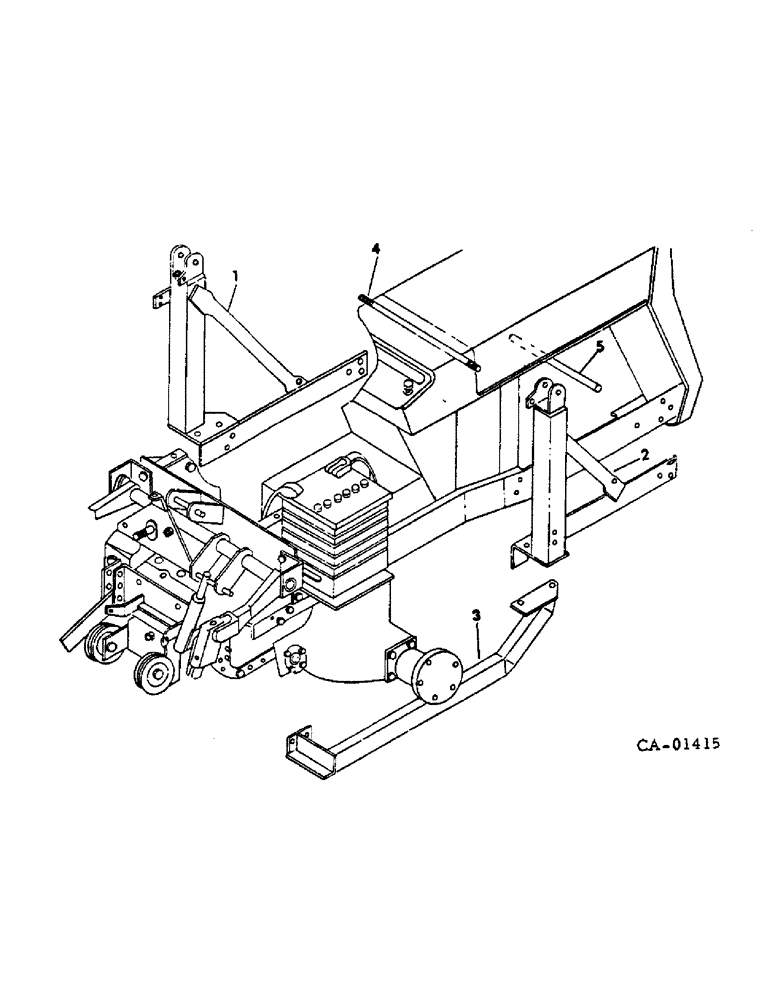

Запчасти Case IH 1050A (D-2) - 1050A LOADER, FRAME

1

544574R1

MOUNTING, upright LH

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

7шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

2

544575R1

MOUNTING, upright RH

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

7шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

3

544040R1

BRACE, rear mounting RH

1шт.

3

544576R1

BRACE, rear mounting LH

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8-16 x 1-1/2 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

2шт.

4

544577R1

ROD, tie

1шт.

5

544578R1

ROD, brace

1шт.
