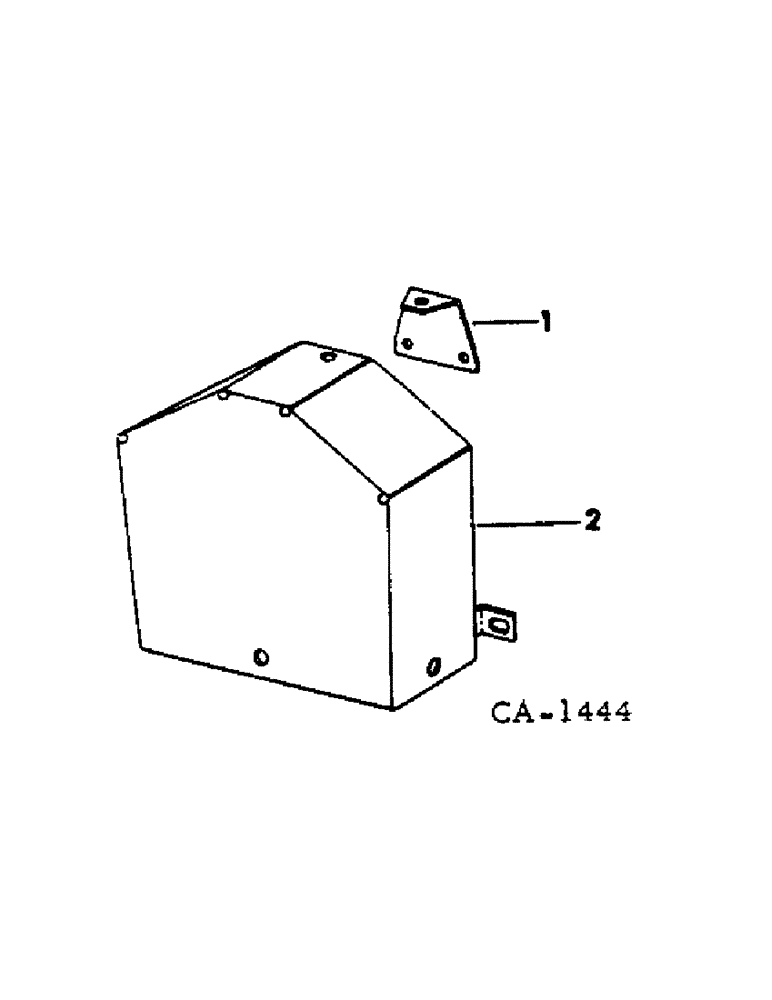

Запчасти Case IH 1050A (D-9) - 1050A LOADER, PUMP DRIVE SHIELD / PRODUCT GRAPHICS

1

405871R1

SUPPORT ASSY

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 znd hex-hd cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

2

491884R11

SHIELD

ASSY

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

545052R1

PRODUCT GRAPHIC, model designation

2шт.

547496R92

DECAL

PACKAGE, International name product graphics

2шт.

547494R92

DECAL

PACKAGE, IH trademark product graphics

2шт.
