(D-8) - 1050A LOADER, BUCKET AND TINE COVER

Запчасти Case IH 1050A (D-8) - 1050A LOADER, BUCKET AND TINE COVER

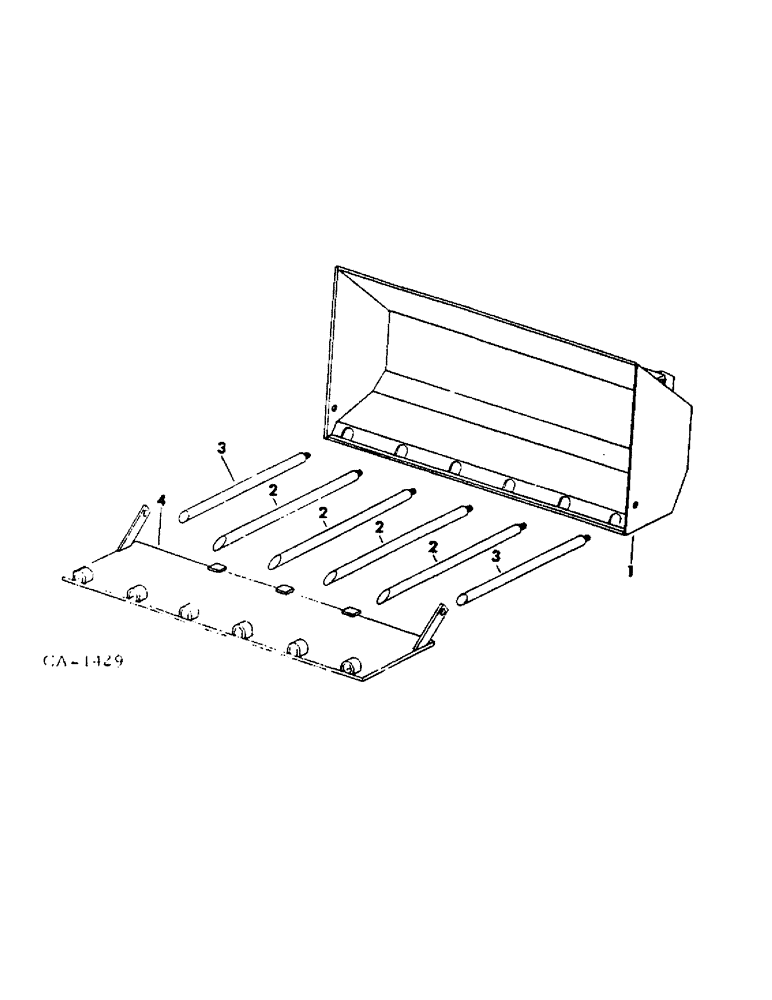

Схема запчастей Case IH 1050A - (D-8) - 1050A LOADER, BUCKET AND TINE COVER
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BUCKET, snow, 49 & 61 in., serviced only as machine attachment

1шт.

1

BUCKET, manure, 42 in., serviced only as machine attachment

1шт.

2

544572R1

TINE, center

4шт.

3

544573R1

TINE

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

6шт.

4

TINE COVER, available for 42 in. manure bucket only

1шт.
