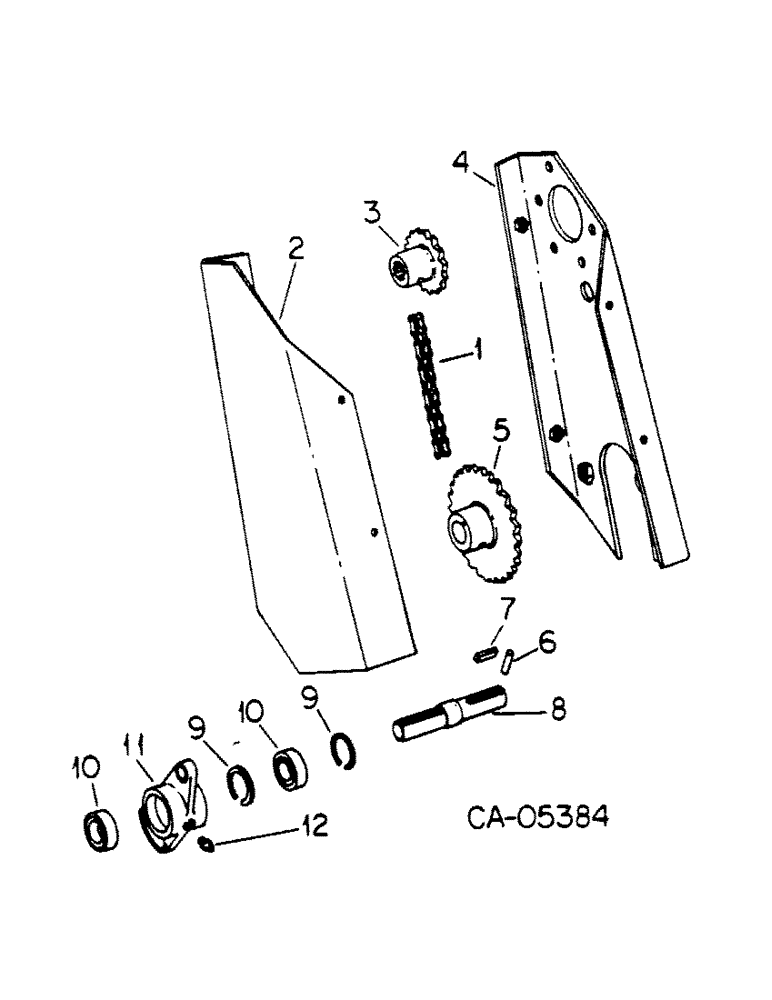

Запчасти Case IH 105 (G-31) - REAR DRIVE UNIT

1

CHAIN, drive, use 58 links of 5/8 in. pitch stock roller chain from a 10 ft roll marked 1791-D, two connecting links 1310-D and one offset link 1315-D

1шт.

2

465524R11

SHIELD, rear drive

1шт.

180018

CONNECTING LINK

SCREW, 1/4 x 5/8 in. C-Z cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

465525R91

SPROCKET, drive, 16 T

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

4

465523R91

PLATE ASSY, rear mounting, unit B

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z cap

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 in. C-Z cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

5

4165527R91

SPROCKET, driven, 29 T

1шт.

6

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, , ESNA 3/16" x 2", Slotted

1шт.

6

576482R1

LOCK PIN,5/16" x 2", Slotted

ESNA 5/16" x 2", Slotted

1шт.

7

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 5/16 x 1 in. sq parallel

2шт.

8

464253R1

SHAFT

rear drive

1шт.

9

360936R1

RING

internal rear drive bearing retaining

2шт.

10

ST211

BEARING, BALL,30 mm ID x 62 mm OD x 16 mm

BEARING, rear drive ball

2шт.

11

463359R1

HOUSING

rear drive

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2 x 1-3/8 in. cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

17/32 x 1-1/4 in. x 16 ga

1шт.

12

16884R1

FITTING, 1/8 in. 65 deg elbow lub

1шт.
