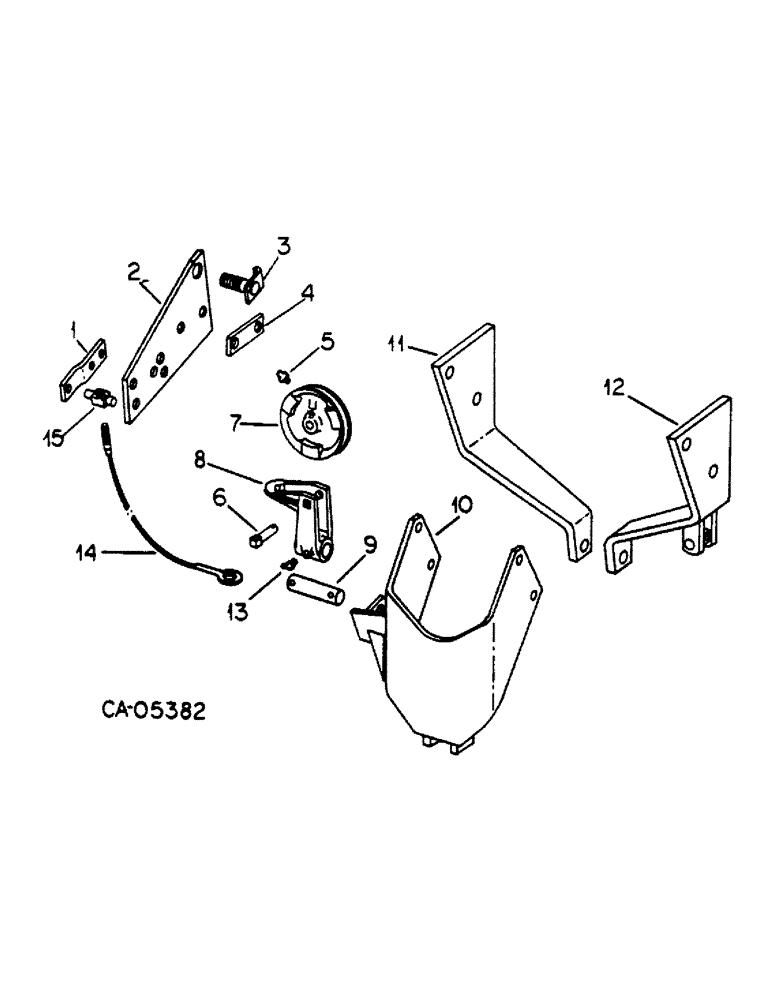

Запчасти Case IH 105 (G-26) - SIDE MOUNTING PLATES, LIFTING CABLE AND LIFT ARM
№
Артикул
Название
Примечание
Количество
1
465510R1
STRAP, cable hammer
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180176
SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5
1/2 x 1-3/8 in. C-Z cap
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
2
465529R2
ARM, cable lift
1шт.
3
465530R11
STUD, clamping
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
4
465532R1
STRAP, cable arm
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
SCREW, 1/2 x 2 in. C-Z cap
2шт.
220384
WASHER, 1/2 in. C-Z lock
2шт.
5
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
6
451823R1
PIN, cable pulley guide
1шт.
7
M2654
PULLEY, lifting cable
1шт.
8
451822R1
SUPPORT, cable pulley
1шт.
9
453988R1
SHAFT, cable pulley support
1шт.
103409
PIN, SPLIT (COTTER),3/16" x 1 1/2"
2шт.
10
465514R11
PLATE, trunnion
1шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 in. C-Z
1шт.
271723
SNAP RING,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8 x 2 in. C-Z cap
4шт.
271729
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5
SCREW, 5/8 x 3-1/2 in. C-Z cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
5шт.
11
465520R1
STRAP, left mounting
1шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
SCREW, 5/8 x 3-1/2 in. C-Z cap
1шт.
271729
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5
SCREW, 5/8 x 3-1/2 in. C-Z cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
12
465521R11
STRAP, right mounting
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/8 x 3-1/2 in. C-Z cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
13
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
FITTING, 1/8 in., 90 degree elbow
1шт.
14
465533R91
CABLE, lifting
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2 in. C-Z jam
1шт.
15
465511R1
PIVOT, cable adjusting
1шт.
Выбрано товаров: 36
