Запчасти Case IH 105 (G-33) - KNIFE RACK ATTACHMENT

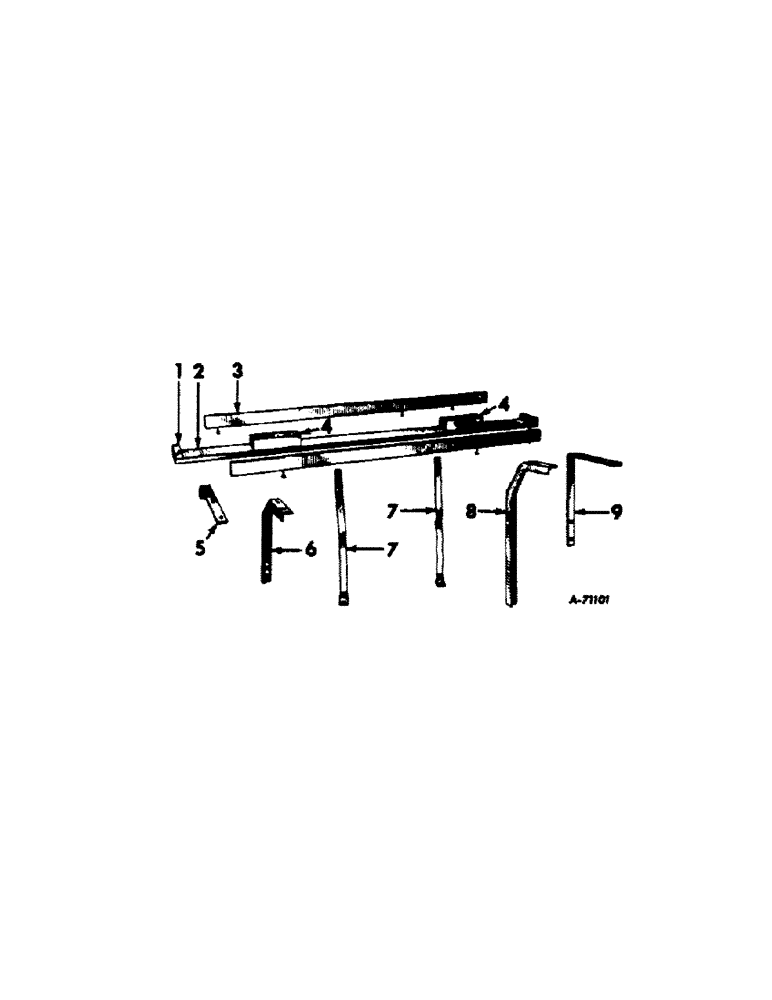

Схема запчастей Case IH 105 - (G-33) - KNIFE RACK ATTACHMENT

Артикул

Название

Примечание

Количество

1

M42464

END, knife rack

2шт.

106909

RIVET, 1/4 x 2 in. truss-hd

4шт.

16558R1

WASHER

17/64 x 5/8 in. x 18 ga

4шт.

2

MB42463

BOTTOM W/ENDS AND KNIFE SPACER, knife rack, riveted assembly

1шт.

2

MB42467

BOARD, knife rack bottom

1шт.

18477

BOLT, 5/16 x 3-1/2 in. sq-nk crg C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

MA42465

SIDE BOARD, knife rack

2шт.

15157R1

BOLT (SPREADER)

BOLT W/NUT, 5/16 x 3-1/4 in. C-Z crg

6шт.

Q243

WASHER

21/64 x 3/4 in. x 16 ga C-Z

4шт.

4

M42466

SPACER, knife

6шт.

134580

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type

RIVET, 1/4 x 3 in. truss-hd

12шт.

16558R1

WASHER

17/64 x 5/8 in. x 18 ga

12шт.

5

465564R1

BRACE, front rack

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 in. C-Z mach

1шт.

6

(Not used this application)

1шт.

7

H8050

STRAP, knife rack

2шт.

7

M42470

STRAP W/BUCKLE ASSEMBLY

2шт.

Q3561

RIVET, 9/64 x 3/8 in. stl-tubular csk-hd pltd

4шт.

8

(Not used this application)

1шт.

9

465565R1

BRACE, knife rack rear

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 in. C-Z mach

1шт.

Выбрано товаров: 22
