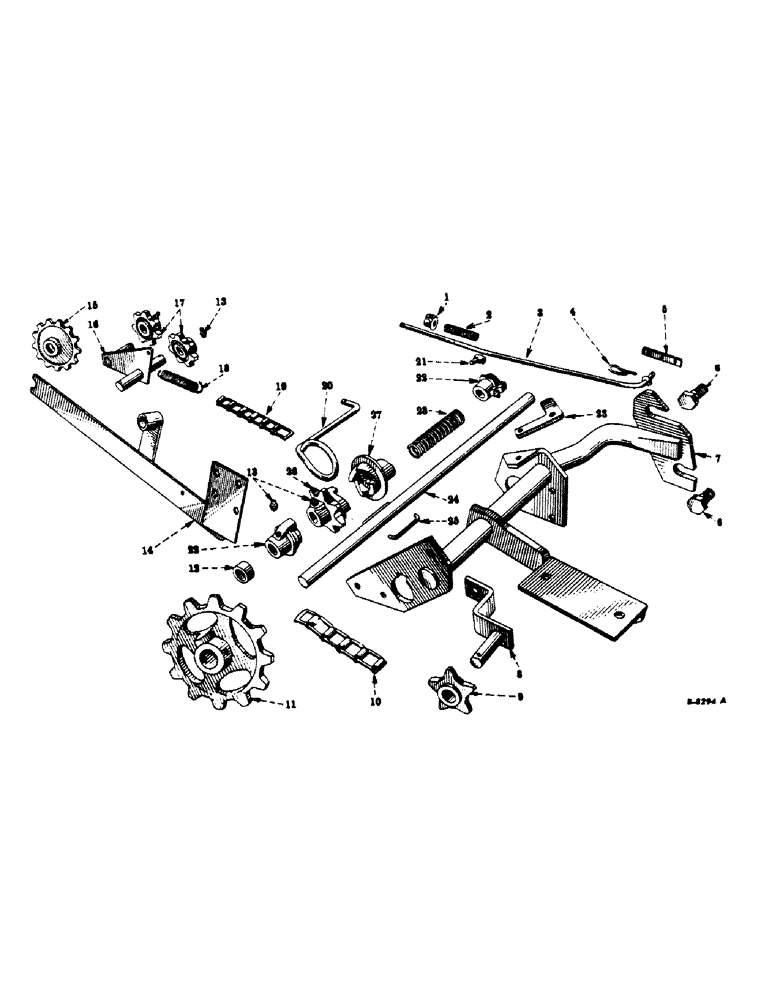

Запчасти Case IH 101A (C-7) - COUNTERSHAFT

1

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW, throw-out rod

1шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 in. cup-pt sq-hd set

1шт.

2

11100D

SPRING

clutch throw-out rod, 5/8 in. OD, 2-3/4 in. long, 13 coils

1шт.

3

512347R1

ROD, clutch throw-out

1шт.

4

512353R1

PIN, quick-attachable cotter

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

5

512682R1

ADAPTER, throw-out rod

1шт.

BOLT, 5/16 x 1-1/4 in. mach

2шт.

WASHER, 11/32 x 1 in. x 16 ga

2шт.

6

PO25842A

BOLT

5/8 x 1-1/4 in. conical-hd cap

1шт.

7

512346R93

FRAME, countershaft

1шт.

8

512351R91

TIGHTENER, hopper drive chain

1шт.

BOLT, 1/2 x 1 in. mach

1шт.

PIN, 3/16 x 1 in. self-opening cotter

3шт.

9

PO2859

SPROCKET ASSY.

SPROCKET, hopper drive chain idler, 5 T

1шт.

10

CHAIN, hopper drive, use 57 no. 32 steel links from 10-ft roll no. CS-32

1шт.

11

PO2639BX

SPROCKET ASSY.

SPROCKET W/SET SCREW, countershaft, 12 T

1шт.

21983R1

PIN, 3/16 x 1-3/4 in. self-opening cotter

1шт.

21228R1

SCREW, 7/16 x 3/4 C-Z cup-pt sq-hd set

1шт.

12

PO11463

SPACER,3/4" Pipe x 11/16"

sprocket and countershaft right bearing

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Countershaft 7-tooth sprocket and countershaft bearing 1/8"-27 x .66 lg

1шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication, 7-tooth idler sprocket

1шт.

14

512202R31

BRACE, countershaft frame

1шт.

BOLT, 3/8 x 1 in. mach

2шт.

BOLT, 5/8 x 1 in. mach, for tractor w/o fast-hitch

1шт.

SCREW, 5/8 x 1 in. slotted hdls, set, for tractor w/fast hitch

1шт.

15

517099R1

SPROCKET ASSY.

SPROCKET, seed plate drive, 13 T

1шт.

BOLT, 7/16 x 1 in. mach

1шт.

WASHER, 7/16 in. lock

1шт.

16

520207R91

TIGHTENER, main chain

1шт.

PIN, 3/16 x 1 in. cotter

3шт.

17

PO3089

DRIVE SPROCKET

SPROCKET, main drive chain idler, 7 T

1шт.

18

PO16

SPRING

main chain tightener, 25/32 in. OD, 3-7/16 in. long, 26 coils, 1955

1шт.

18

PO8

SPRING

main chain tightener, 3/4 in. OD 3-1/2 in. long, 35-1/2 coils, 1956 and since

1шт.

19

CHAIN, main drive, use 62 no. 32 steel links from 10 ft roll no. CS-32

1шт.

20

512348R1

LINK, throw out rod

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

21

PO2437

PIVOT

SWIVEL, throw-out rod

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

22

PO2677

HUB

BEARING, countershaft

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

23

PO27788

BELLCRANK, throw out rod

1шт.

BOLT, 3/8 x 1 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

WASHER, 13/32 x 1 in. x 16 ga

1шт.

24

512352R1

COUNTERSHAFT

1шт.

PIN, 1/4 x 1 in. self-opening cotter

1шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

3шт.

25

PO23196

KEY

countershaft

1шт.

26

512162R1

SPROCKET ASSY.

SPROCKET, clutch, 7 T

1шт.

27

PO1933A

CLUTCH

drive

1шт.

28

PO156

SPRING

throw out clutch, 1-1/32 in. OD, 4-1/2 in. long, 16 coils

1шт.
