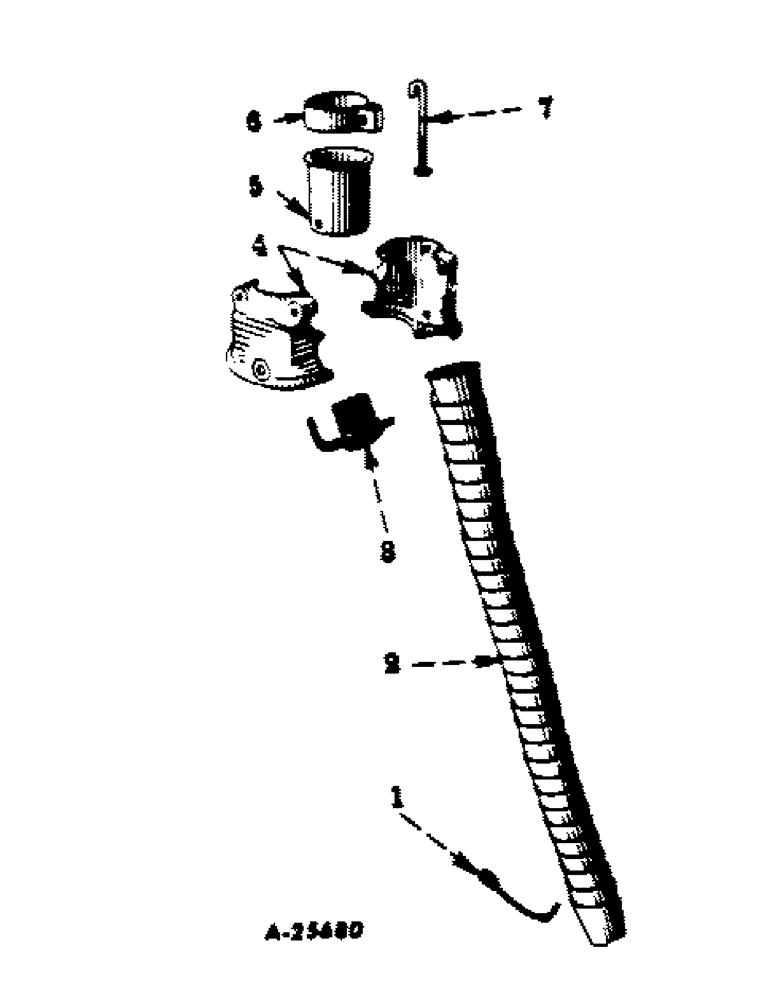

Запчасти Case IH 101A (C-6) - STREAM DIVIDER

1

PO28475

BRACE

CONNECTION, tube

1шт.

BOLT, 5/16 x 1 in. crg

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 in. wing

1шт.

WASHER, 11/32 x 3/4 in. x 16 ga

1шт.

2

516481R1

TUBE

fertilizer, 26 in. long

1шт.

2

622000R1

TUBE

fertilizer, 22 in. long

1шт.

3

516478R11

DIVIDER

VALVE, divider

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

WASHER, 11/32 x 3/4 in. x 16 ga

1шт.

4

516477R1

CASE

divider half

1шт.

NUT, no. 10 sq

2шт.

110510

SCREW, no. 10 x 2 in. slt-rd-hd mach

2шт.

WASHER, no. 10 lock

2шт.

5

516482R1

TUBE

connecting

1шт.

6

516385R1

CLAMP

tube connecting

1шт.

NUT, no. 10 sq

1шт.

110504

SCREW,Slotted Rd Hd, #10-24 x 1"

no. 10 x 1 in. slt-rd-hd mach

1шт.

WASHER, no. 10 lock

1шт.

7

516480R11

BOLT

HOOK W/NUT, clamp

1шт.

NUT, 1/4 in. sq

1шт.

WASHER, 9/32 x 3/4 x 18 ga

1шт.
