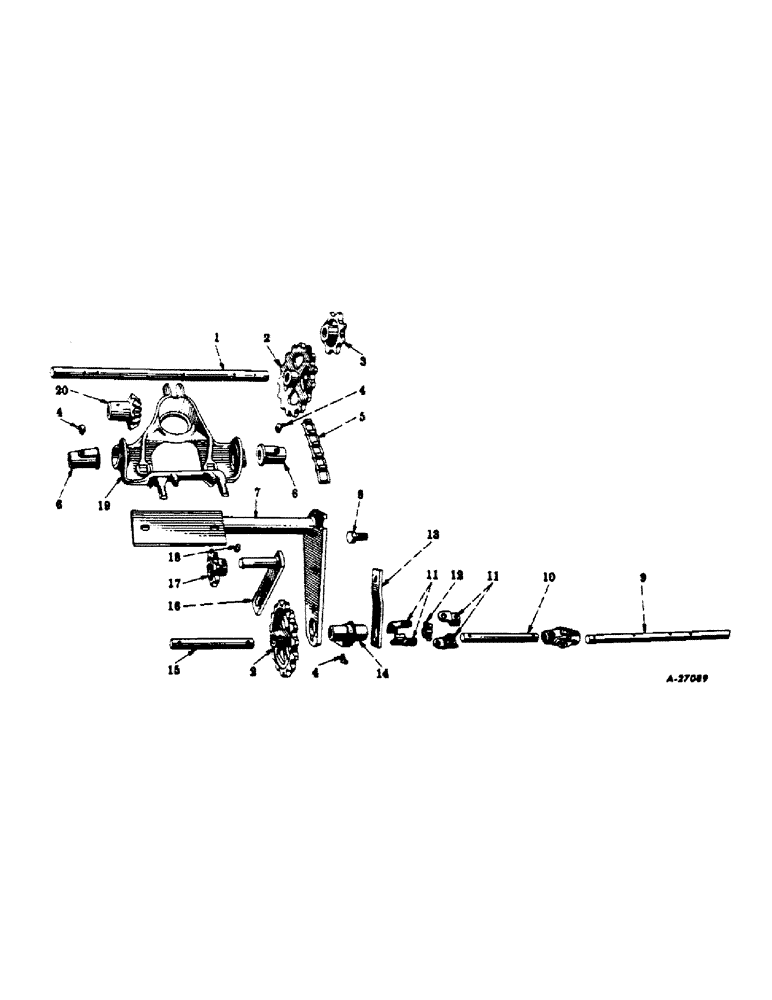

Запчасти Case IH 101A (C-5) - HOPPER AND BRACKET SUPPORT, LEFT, FOR EXTRA HOPPER
№
Артикул
Название
Примечание
Количество
1
516847R1
SHAFT, feed
1шт.
PIN, 1/4 x 1-1/4 in. self-opening cotter
2шт.
WASHER, 25/32 x 1-1/4 in. x 16 ga
2шт.
2
510943R1
SPROCKET ASSY.
SPROCKET, feed shaft and countershaft extension
1шт.
PIN, 1/8 x 5/8 in. self-opening cotter
1шт.
PIN, 3/16 x 1-3/4 in. self-opening cotter, to extensions
1шт.
Q3514
HEADED PIN,1/4" x 1 9/16"
PIN, 1/4 x 1-9/16 in. dld-std-hd, to countershaft
1шт.
3
PO575AX
SPROCKET ASSY.
SPROCKET W/SET SCREW, feed shaft, 8 T
1шт.
102893
SCREW, 3/8 x 5/8 in. cup-pt sq-hd set
1шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
FITTING, 1/8 x 65 deg elbow lub, in feed shaft bearing
1шт.
5
CHAIN, hopper drive, use 35 no. 32 steel links from 10 ft roll no. CS-32
1шт.
6
PO1818
BUSHING
BEARING, feed shaft
1шт.
7
516843R91
SUPPORT, hopper bracket
1шт.
8
PO25842A
BOLT
5/8 x 1-1/4 in. conical-hd cap
2шт.
9
516846R1
COUNTERSHAFT
1шт.
10
516845R1
SHAFT, countershaft and extension coupling
1шт.
11
PO722
PIVOT, countershaft extension
1шт.
12
PO723
SPIDER ASSY.
KNUCKLE, countershaft extension
1шт.
BOLT, 1/4 x 1-3/4 in. mach
1шт.
WASHER, 1/4 in. lock
1шт.
13
516848R1
PLATE, bearing retainer
1шт.
BOLT, 1/2 x 1-1/2 in. mach
1шт.
WASHER, 1/2 in. lock
1шт.
14
PO1760
BEARING, countershaft extension
1шт.
15
516844R1
EXTENSION, countershaft
1шт.
WASHER, 25/32 x 1-1/4 in. x 11 ga
1шт.
16
516840R91
TIGHTENER, chain
1шт.
BOLT, 1/2 x 1-3/4 in. mach
1шт.
PIN, 1/4 x 1-1/4 in. self-opening cotter
1шт.
WASHER, 17/32 x 1-1/4 in. x 16 ga
1шт.
17
PO3089
DRIVE SPROCKET
SPROCKET, idler, 7 T
1шт.
18
125617
LUBE NIPPLE,3/16" x .61 lg, Drive
FITTING, 3/16 in. drive type straight lubrication, in 7 tooth idler sprocket
1шт.
19
513999R3
BRACKET
hopper
1шт.
BOLT, 1/2 x 1-1/4 in. crg
2шт.
WASHER, 1/2 in. lock
2шт.
20
513998R1
PINION
drive, 13 T
1шт.
PIN, 1/8 x 5/8 in. self-opening cotter
1шт.
Q3514
HEADED PIN,1/4" x 1 9/16"
PIN, 1/4 x 1-9/16 in. dld-std-hd
1шт.
Выбрано товаров: 38
