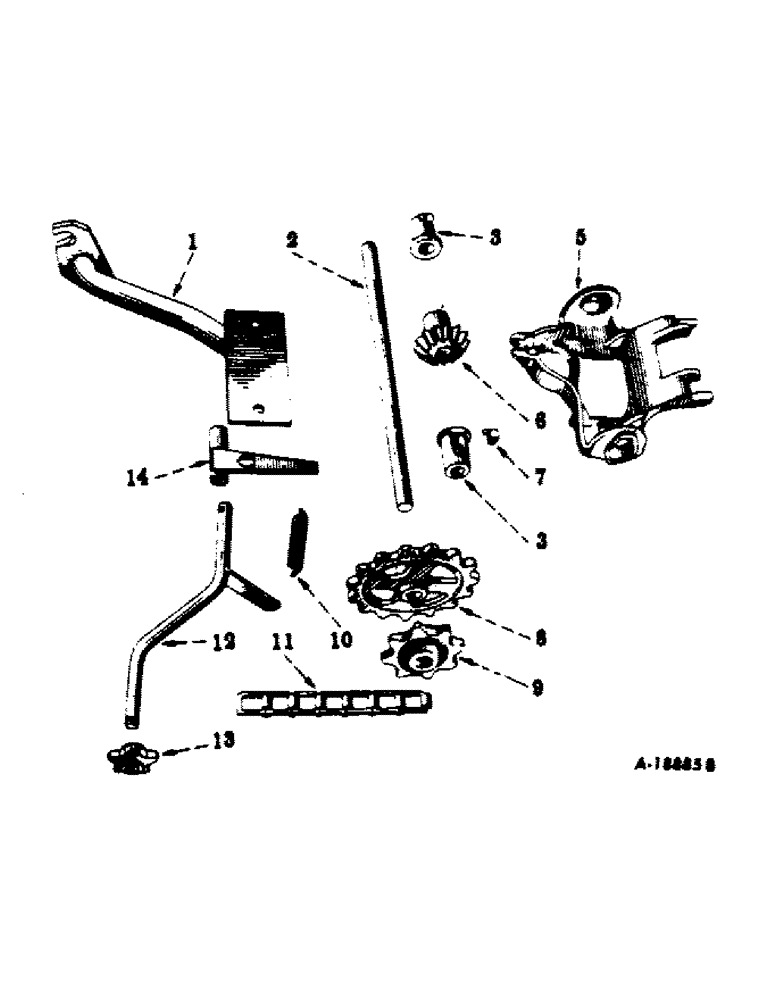

Запчасти Case IH 101A (C-4) - HOPPER BRACKET AND SUPPORT

1

514002R92

SUPPORT, hopper bracket

1шт.

PO25842A

BOLT

5/8 x 1-1/4 in. conical-hd

2шт.

2

514009R1

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

3шт.

3

PO1818

BUSHING

BEARING, feed shaft

1шт.

4

(Not used this application)

1шт.

5

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/2 C-Z crg

2шт.

6

513998R1

PINION

drive, 13 T

1шт.

103034

LEVER

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

8

510943R1

SPROCKET ASSY.

SPROCKET, feed shaft, 15 T

1шт.

9

PO1763

DRIVE SPROCKET

SPROCKET, drive shaft, 7 T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

10

PO7

SPRING

chain tightener arm, 3/4 in. OD, 4-1/8 in. long, 47-1/2 coils

1шт.

11

CHAIN, hopper drive, use 57 no. 32 steel links from 10 ft roll no. CS-32, for cultivator

1шт.

12

514008R91

ARM, chain tightener

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

13

PO2859

SPROCKET ASSY.

SPROCKET, hopper drive chain idler, 5 T

1шт.

14

514005R91

BRACKET, chain tightener arm

1шт.
