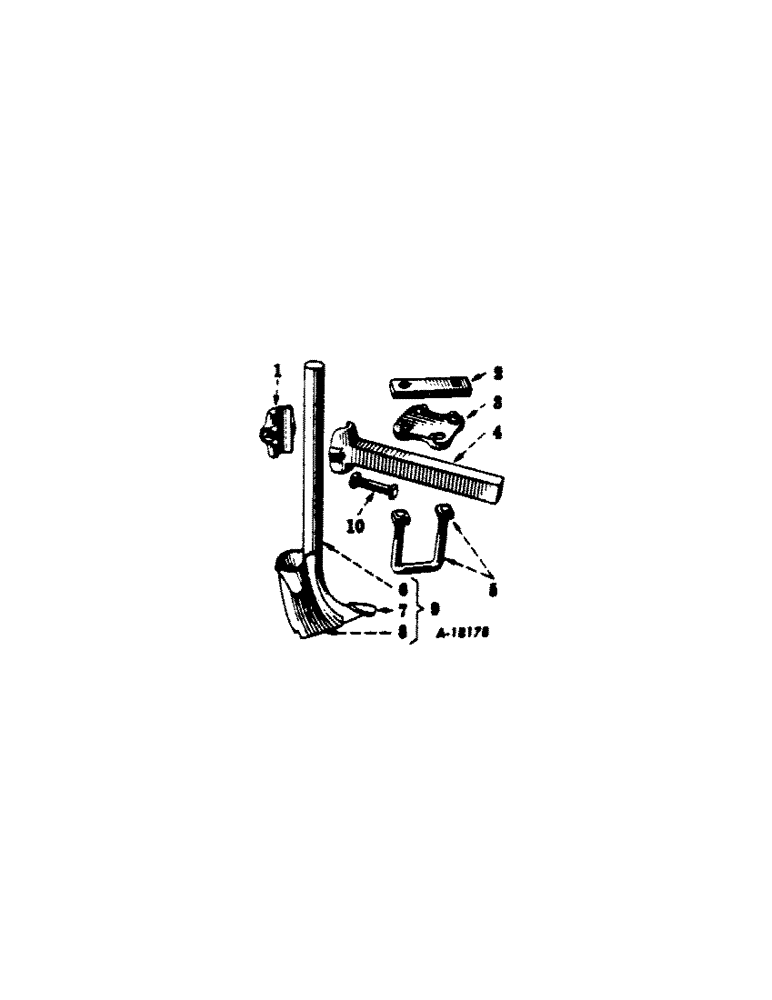

Запчасти Case IH 101A (C-8[C]) - DEEP APPLICATOR / PRODUCT GRAPHICS

1

1779BB

CLAMP

CAP, tool bar extension

1шт.

2

29269BA

STRAP

CLIP, u-bolt

1шт.

3

514299R1

BLOCK, clamp

1шт.

4

29603BA

CLAMP

EXTENSION, tool bar

1шт.

5

514300R2

U-BOLT, clamp block

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

6

514296R1

SHANK

STANDARD

1шт.

7

PO26869

SHOVEL

POINT, diamond

1шт.

104169

RIVET, 1/4 x 1 in. csk-hd

1шт.

104171

RIVET, 1/4 x 1-1/4 in. csk-hd

1шт.

8

514663R91

CHUTE (DOWNWARD)

SPOUT ASSY

1шт.

106918

RIVET

5/16 x 1-1/4 in. truss-hd

3шт.

9

STANDARD W/POINT AND SPOUT

1шт.

10

29822B

BOLT

1/2 x 2-3/4 in. sq-hd mach, heat-treated

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2752215R1

IH, opposite the fertilizer feed spout and 3 in. below the top opening

1шт.
