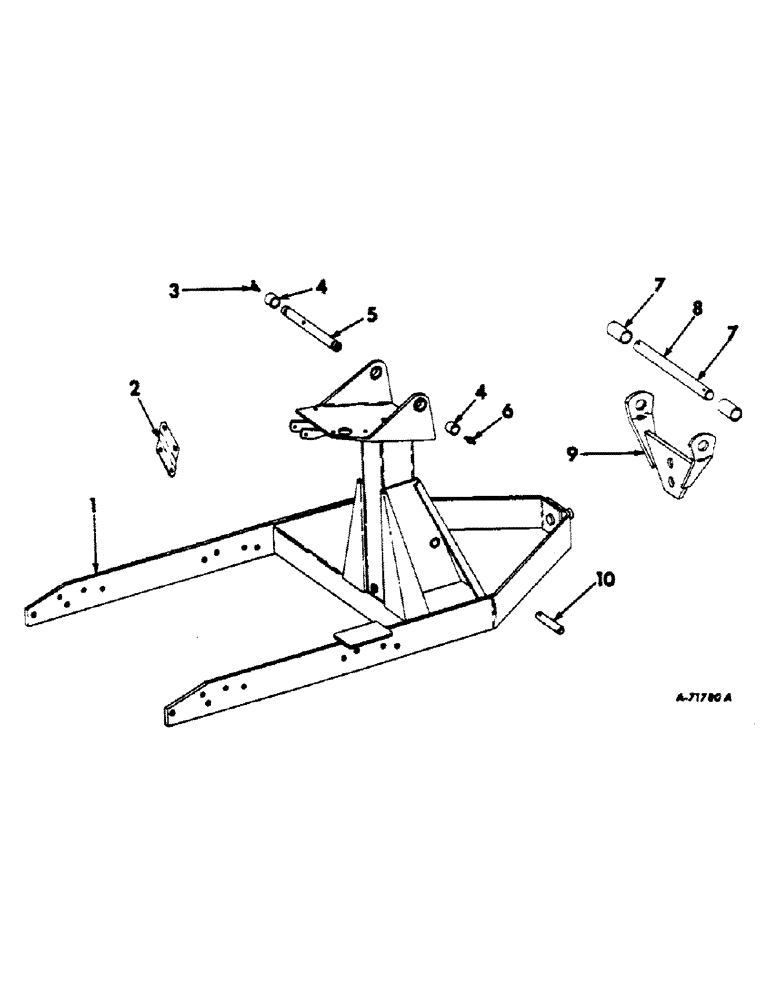

Запчасти Case IH 1000 (E-03) - SUBFRAME AND MOUNTING SUPPORT

1

469817R92

SUBFRAME

1шт.

PIN, 1/8 x 5/8 C-Z cot.

2шт.

28010B

PIN, quick attachable cot.

1шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-13/16 C-Z dld-std-hd

2шт.

SCREW, 5/8 x 1-3/8 C-Z cap

4шт.

WASHER, 5/8 C-Z lock

4шт.

WASHER, 1-7/16 x 3 x 7 ga C-Z

3шт.

2

469757R1

SUPPORT, muffler

1шт.

NUT, 1/4 C-Z

2шт.

SCREW, 1/4 x 5/8 C-Z cap

2шт.

WASHER, 1/4 C-Z lock

2шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/2-27 PTF 65 deg. lub

1шт.

4

378478R1

BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L

boom pivot

2шт.

5

469831R1

PIN, pivot

1шт.

PIN, 1/8 x 5/8 C-Z cot.

1шт.

457216R1

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 dld-std-hd

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PFT 1/8"-27 x .66 lg

1шт.

7

469756R1

SPACER, mounting bar

2шт.

8

469755R1

BAR, mounting support

1шт.

520174R1

CLIP, SPRING

PIN, quick attachable cot.

2шт.

WASHER, 1-9/16 x 2 x .280 in. C-Z

2шт.

9

469752R91

SUPPORT, mounting

1шт.

10

378558R1

SHAFT

PIN, hydraulic cylinder attaching

1шт.
