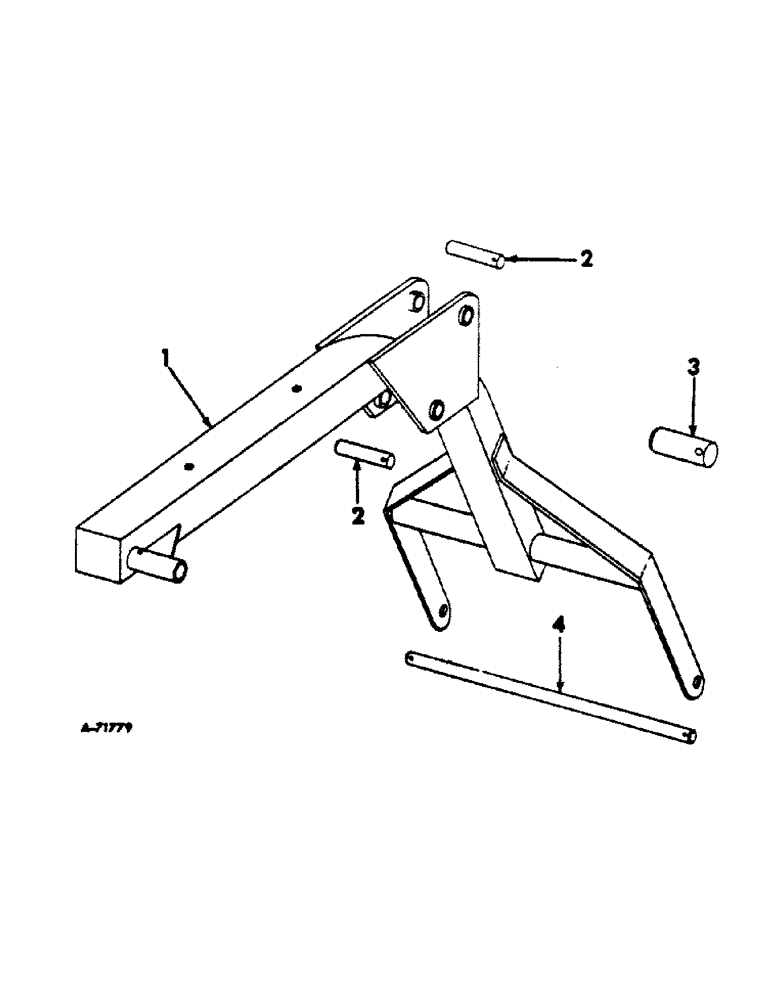

Запчасти Case IH 1000 (E-02) - BOOM

1

469839R91

BOOM

1шт.

PIN, 1/8 x 5/8 C-Z cot.

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-13/16 C-Z dld-std-hd

2шт.

470850R1

REMOTE CONTROL SPACER

2шт.

2

378558R1

SHAFT

PIN, hydraulic cylinder attaching

2шт.

3

378479R1

SHAFT

PIN, bucket cylinder

1шт.

PIN, 1/8 x 5/8 C-Z cot.

1шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-13/16 C-Z dld-std-hd

1шт.

4

469847R1

PIN, bucket pivot

1шт.

PIN, 3/16 x 1-3/4 C-Z cot.

2шт.

WASHER, 1-3/16 x 2-1/2 x 8 ga C-Z

2шт.
