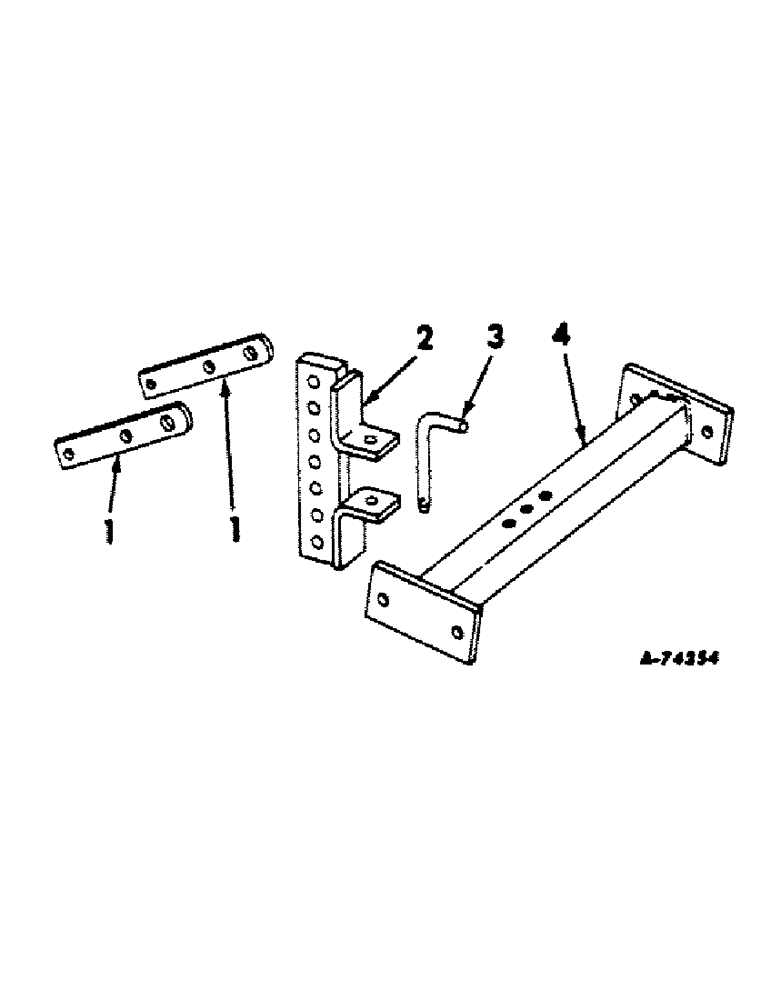

Запчасти Case IH 1000 (E-11) - FAST HITCH, ADAPTING PACKAGE, PRODUCT GRAPHICS

1

471731R1

STRAP, adjustment

2шт.

2

471728R91

SUPPORT ASSY, adjustment

1шт.

3

471727R1

PIN, adjustment

1шт.

520175R1

CLIP

PIN, quick attaching cot.

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 16 ga

6шт.

4

471724R91

CROSS-TIE ASSY

1шт.

NUT, 5/8 C-Z

4шт.

SCREW, 5/8 x 2-1/4 C-Z

4шт.

WASHER, 5/8 C-Z lock

4шт.

2751143R1

1000 LOADER, one on each side of boom

2шт.

2751131R1

INTERNATIONAL, one on each side of boom

2шт.

2750502R1

PRODUCT GRAPHIC

I.H., one on each side of front of boom

2шт.
