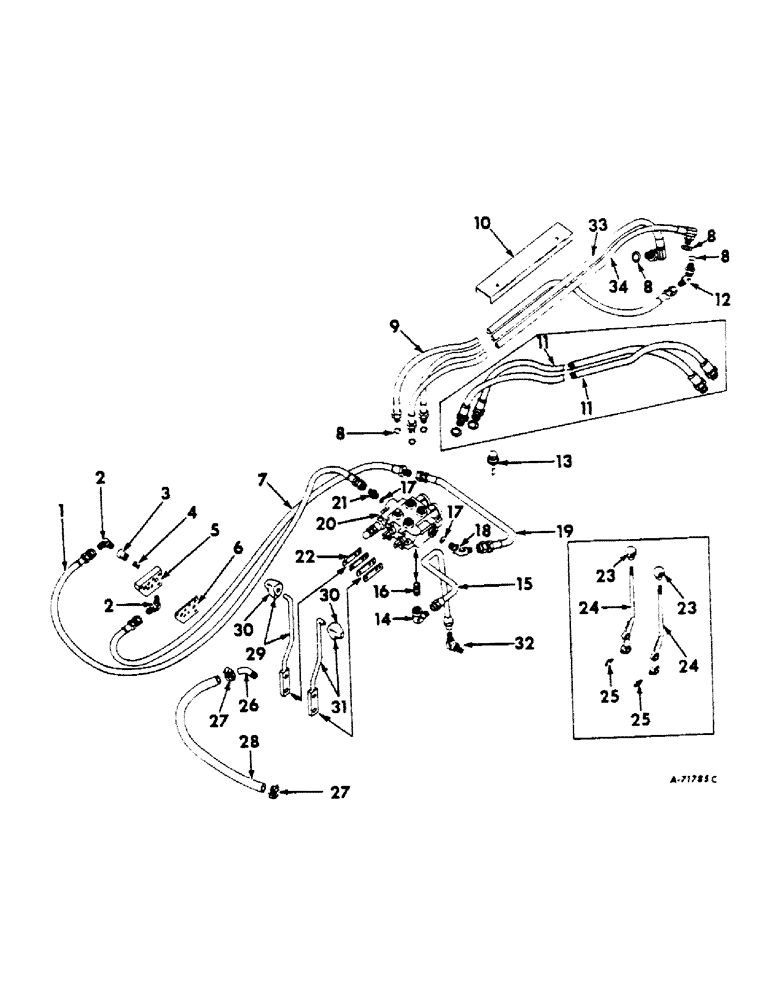

Запчасти Case IH 1000 (E-08) - HYDRAULIC CONNECTIONS, FOR FARMALL CUB AND INTERNATIONAL LO-BOY TRACTORS

1

469778R91

HOSE, hydraulic, 28 in. long

1шт.

2

9402864

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF

flared 90 deg C-Z

2шт.

3

144098

REDUCER

COUPLING, reducing pipe C-Z

1шт.

4

192032

NIPPLE, 1/8 x 3/4 pipe

1шт.

5

469771R1

BLOCK

by-pass

1шт.

6

469772R1

GASKET

by-pass block

1шт.

SCREW, 5/16 x 2-1/4 C-Z cap

3шт.

SCREW, 3/8 x 2 C-Z cap

3шт.

SCREW, 3/8 x 2-3/4 C-Z cap

1шт.

SCREW, 3/8 x 4 C-Z cap

2шт.

7

469779R91

HOSE, hydraulic, 30 in. long

1шт.

8

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

6шт.

9

469781R91

HOSE, hydraulic, 82 in. long

1шт.

10

469774R1

COVER, boom hose

1шт.

SCREW, 5/16 x 7/8 cap

2шт.

11

469780R91

HOSE, hydraulic, 68 in. long, 1962 to 1965, for use w/381283R91 hydraulic cylinder

2шт.

12

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

flared 45 deg

1шт.

13

651616R1

BREATHER

reservoir

1шт.

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

1/2 x 90 deg street

1шт.

143935

PLUG, 1/2 sq-hd pipe

1шт.

14

9402906

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, Fem NPTF

flared 90 deg C-Z

1шт.

15

469770R11

TUBE, return

1шт.

16

192470

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE, 3/4 x 1-3/8 C-Z pipe

1шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32

2шт.

18

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

flared 90 deg C-Z

1шт.

19

469777R91

HOSE, hydraulic, 15 in. long

1шт.

20

469764R91

VALVE ASSY, hydraulic control

1шт.

NUT, 3/8 C-Z

3шт.

SCREW, 3/8 x 2-1/4 C-Z cap

3шт.

WASHER, 3/8 C-Z lock

3шт.

21

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, flared tube

1шт.

22

469768R1

LINK, valve

4шт.

PIN, 1/8 x 5/8 C-Z cot.

2шт.

PIN, 1/8 x 3/4 C-Z cot.

2шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 dld-std-hd

2шт.

S3631/2

PIN

3/8 x 1-1/4 dld-std-hd

2шт.

WASHER, 9/32 x 5/8 x 16 C-Z

2шт.

WASHER, 13/32 x 13/16 x 16 ga C-Z

2шт.

23

469766R1

KNOB, valve control handle, 1962

2шт.

24

469765R1

KNOB, valve, control handle, 1962

2шт.

PIN, 3/16 x 1 C-Z cot.

1шт.

469769R1

PIN, 9/16 x 3-1/2 dld-std-hd

1шт.

WASHER, 9/16 x 1-1/4 x 12 ga C-Z

1шт.

25

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , 1962 1/8"-27 x .66 lg

2шт.

26

469775R1

TUBE, sump, note

1шт.

27

39114H

CLAMP

hose

2шт.

28

469773R1

HOSE, sump return

1шт.

29

472682R91

HANDLE W/KNOB, valve LH

63шт.

PIN, 3/16 x 1 C-Z cot.

1шт.

469769R1

PIN, 9/16 x 3-1/2 dld-std-hd

1шт.

WASHER, 19/32 x 1-3/16 x 13 ga C-Z

9шт.

30

379022R2

KNOB

valve control handle

63шт.

31

472683R91

HANDLE W/ KNOB, valve RH

63шт.

32

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

flared 90 deg C-Z

1шт.

33

484716R91

HOSE ASSY, hydraulic 66.5 in. long, for use w/484689R91 hydraulic cylinder

65шт.

34

484717R91

HOSE ASSY, hydraulic 89 in. long, for use w/484689R91 hydraulic cylinder

65шт.
