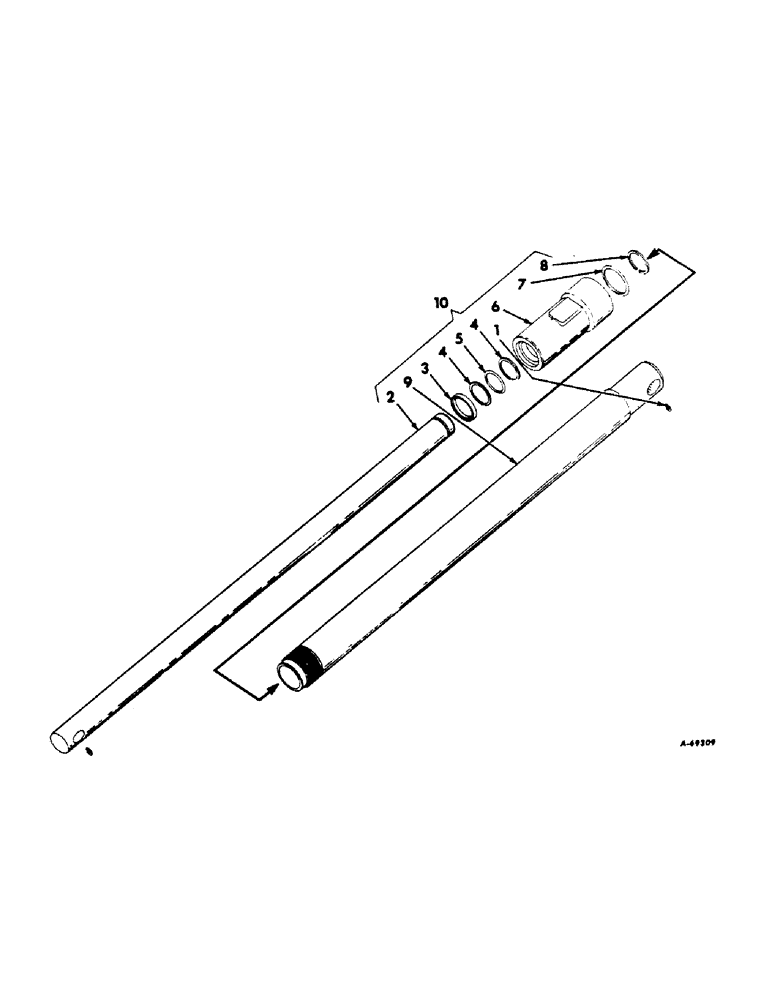

Запчасти Case IH 1000 (E-07) - HYDRAULIC LIFT CYLINDER

1

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type lubrication

2шт.

2

381301R1

ROD, piston

1шт.

3

378751R1

WIPER SEAL

WIPER

1шт.

4

378726R1

BACK-UP RING

backup

2шт.

5

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16

1шт.

6

378696R1

HEAD, front

1шт.

7

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32

1шт.

8

378752R1

RING, PISTON

STOP, piston rod

1шт.

9

381299R11

HEAD, rear cylinder

1шт.

10

381298R91

CYLINDER, hydraulic lift, 2 x 25 in.

1шт.

471269R91

KIT

PACKAGE, hydraulic cylinder service, composed of (1) o-ring 366581R1 (1) o-ring 464048R1 (1) stop 378752R1 (2) washer 378726R1 (1) wiper 378751R1

1шт.
