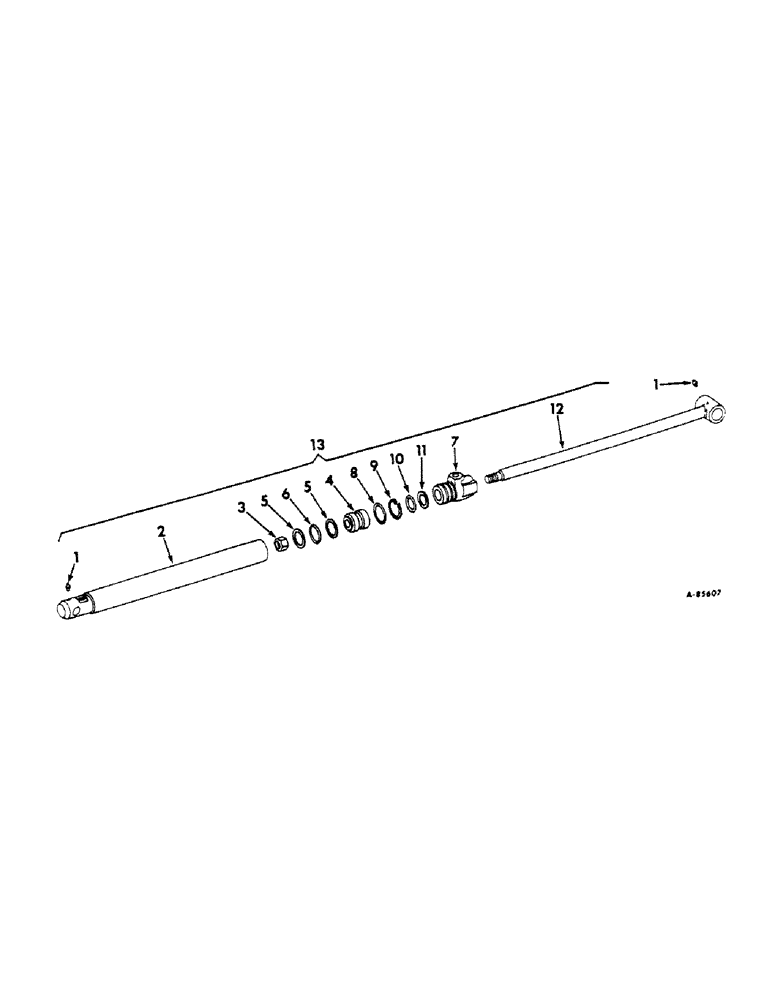

Запчасти Case IH 1000 (E-06) - HYDRAULIC BUCKET CYLINDER, 1965 AND SINCE

1

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

2шт.

2

484690R91

BODY ASSY, hyd cylinder

1шт.

3

385020R1

NUT

3/4-16 hex. lock

1шт.

4

381849R1

HEAD

PISTON, hyd cylinder

1шт.

5

381850R1

WASHER

back up

2шт.

6

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16

1шт.

7

484693R91

HEAD ASSY, rod end

1шт.

8

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1/8

1шт.

9

461180R1

RETAINER

RETAINING, wire

1шт.

10

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, piston rod

1шт.

11

383669R1

BACK-UP RING

back up piston rod

1шт.

12

484695R91

ROD ASSY, piston

1шт.

13

484689R91

CYLINDER, double acting bucket, 2 x 17.65 stroke

1шт.

386685R91

KIT

PACKAGE, hydraulic cylinder service, composed of (1) o-ring 381565R1 (1) retainer 354049R1 (1) seal 354048R1 (1) washer 381850R1

1шт.
