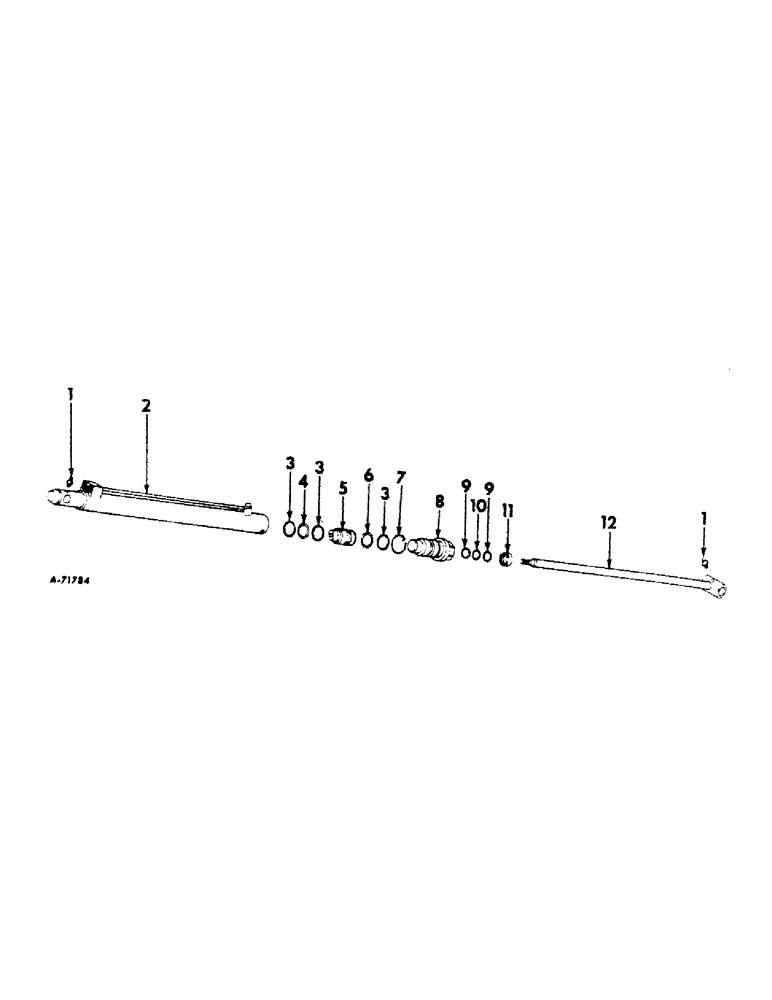

Запчасти Case IH 1000 (E-05) - HYDRAULIC BUCKET CYLINDER, 1962 TO 1965

1

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type lubrication

2шт.

2

381284R91

CYLINDER, hydraulic, 1962 to 1965, furnish 484689R91 hydraulic cylinder assy, 484716R91 hydraulic hose assy and 484717R91 484719R91 hydraulic hose assy

1шт.

3

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

back-up

3шт.

4

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

piston head, 1-19/32 x 2 x 13/64

1шт.

5

381295R1

PISTON

1шт.

6

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

tube

1шт.

7

378585R1

SPOKE

KEY, retaining

1шт.

8

381291R1

HEAD, front

1шт.

9

381297R1

WASHER, back-up

2шт.

10

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

RING, hydraulic pump flange seal

1шт.

11

66038R91

WIPER, rod

1шт.

12

381289R11

ROD, piston

1шт.

381283R91

CYLINDER, double acting bucket, 2 x 18.4 in., 1962 to 1965, furnish 484689R91 hydraulic cylinder assy, 484716R91 hydraulic hose assy and 484717R91 hydraulic hose assy

1шт.

471268R91

PACKAGE, hydraulic cylinder service, composed of (2) o-ring 381565R1 (1) o-ring 380794R1 (3) washer 381293R1 (2) washer 381297R1 (1) wiper 660038R91

1шт.
