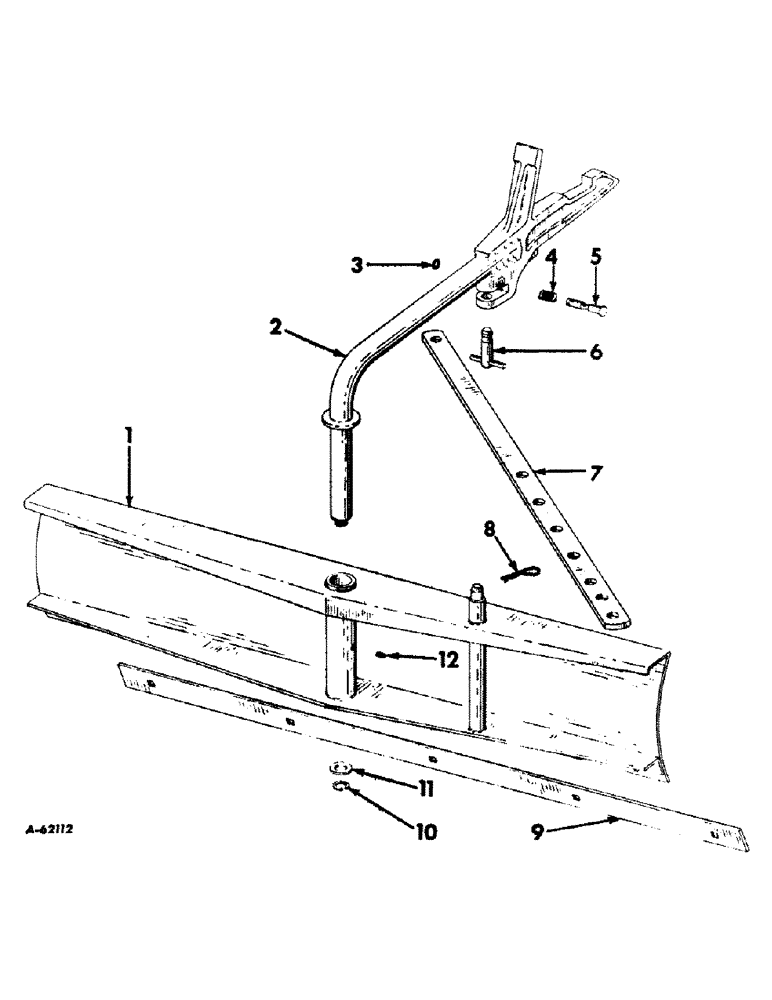

Запчасти Case IH 100 (H-2) - MAIN FRAME AND BLADE - 100 BLADE

1

464031R11

BLADE ASSY, 5 ft.

1шт.

2

464027R11

FRAME ASSY, main

1шт.

3

354837R1

WASHER

lock pin

1шт.

4

352370R1

SPRING

lock pin

1шт.

5

352369R2

PIN

lock

1шт.

103373

COTTER PIN,3/32" x 3/4"

PIN, 3/32 x 3/8 cot.

1шт.

6

464030R11

PIN ASSY, adjusting pivot

1шт.

19845R1

LOCK PIN,3/8" x 2 3/4", Slotted

Pin, 3/8" x 2 3/4", Slotted

1шт.

7

464029R1

ARM, adjusting

1шт.

8

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

9

464035R1

EDGE, blade cutting

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 C-Z sq-nk crg

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

10

556171R1

RING, retaining

1шт.

11

Q5036

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

464304R1

SEAL, blade shaft

1шт.

547494R91

DECAL

PACKAGE, IH trademark product graphics

1шт.

547496R91

DECAL KIT

PACKAGE, International product graphics

1шт.

547498R91

PACKAGE

model designation product graphics

1шт.
