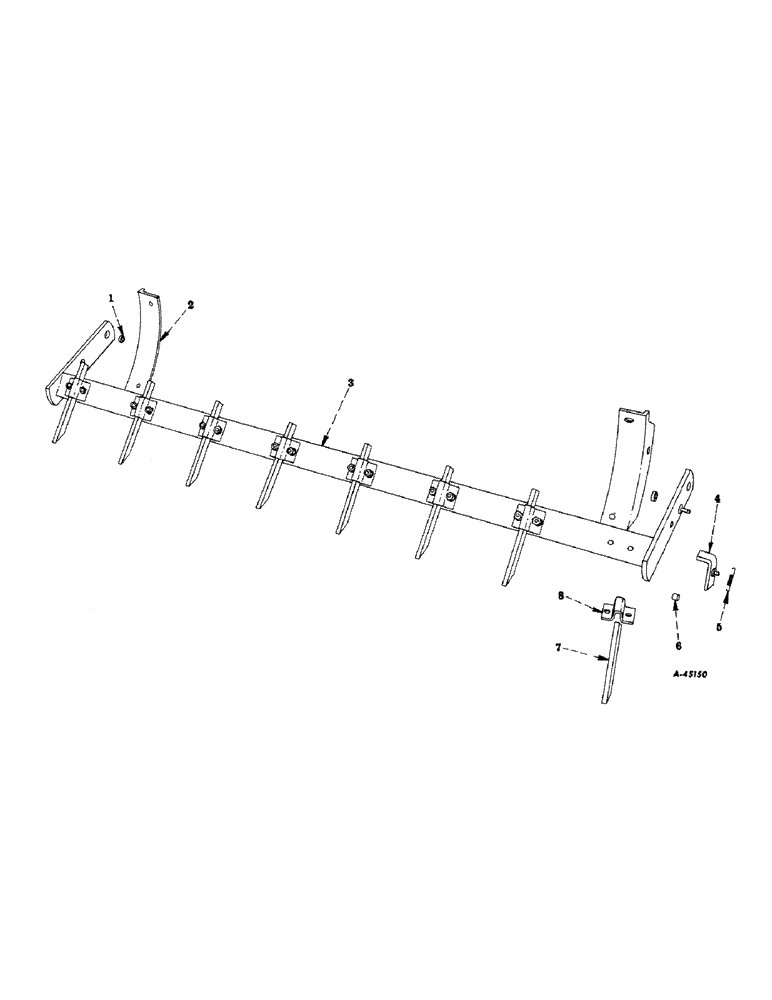

Запчасти Case IH 1 (D-5) - SCARIFIER ATTACHMENT 1958-1961 - ONE BACKFILL BLADE

1

P14244

BEARING

BUSHING, scarifier arm

2шт.

2

652039R1

SUPPORT, left scarifier

1шт.

2

652040R1

SUPPORT, right scarifier

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 sq-nk crg

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

652047R91

BAR ASSEMBLY, scarifier

1шт.

17525R1

BOLT

5/8-11 x 2 hex-hd mach.

2шт.

102639

NUT,5/8"-11, G5

2шт.

12258R1

WASHER

1-1/4 x 21/32 x 11 ga

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

652046R91

LATCH ASSEMBLY, scarifier bar

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2-13 x 1-3/4 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

PO10535

WASHER

1-1/4 x 17/32 x 11 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

41935D

SPRING, scarifier bar latch

1шт.

6

651219R1

BUSHING, scarifier bar latch

1шт.

7

652044R1

TOOTH, scarifier

8шт.

8

652043R1

CLAMP, scarifier tooth

8шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2-13 x 1-1/2 hex-hd mach

16шт.

102637

NUT,1/2"-13, G5

16шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

652563R93

PACKAGE, product graphics, Consists of

1шт.

2751045R1

PRODUCT GRAPHIC, International

1шт.

2750323R1

PRODUCT GRAPHIC, model designation

1шт.

1001412R2

DECAL

PRODUCT GRAPHIC, IH

1шт.
