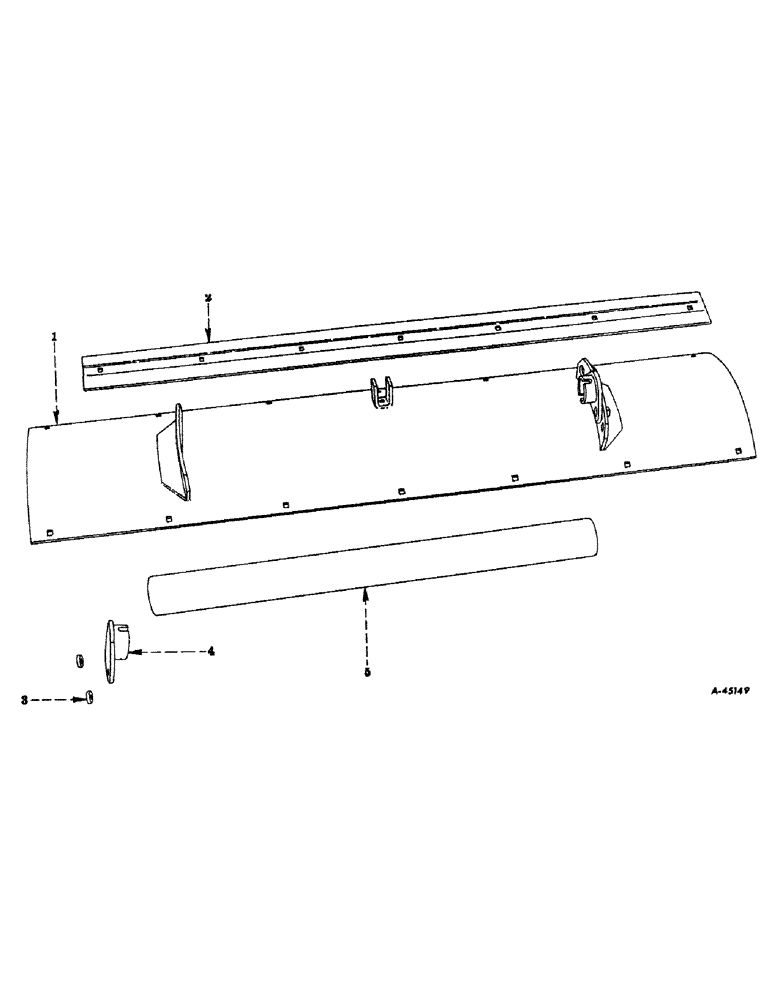

Запчасти Case IH 1 (D-2) - BASIC MACHINE BLADE - ONE BACKFILL BLADE

1

650934R91

BLADE, assembly, 1955-1956

1шт.

1

652727R91

BLADE, assembly, 1956

1шт.

2

650835R1

CUTTING EDGE

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

7шт.

102637

NUT,1/2"-13, G5

7шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

3

652056R1

BUSHING, pitch angle blade

4шт.

4

652053R1

PLATE, slide bar end

2шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 sq-nk crg

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

PO10535

WASHER

1-1/4 x 17/32 x 11 ga

4шт.

5

652054R91

BAR, slide assembly

1шт.
