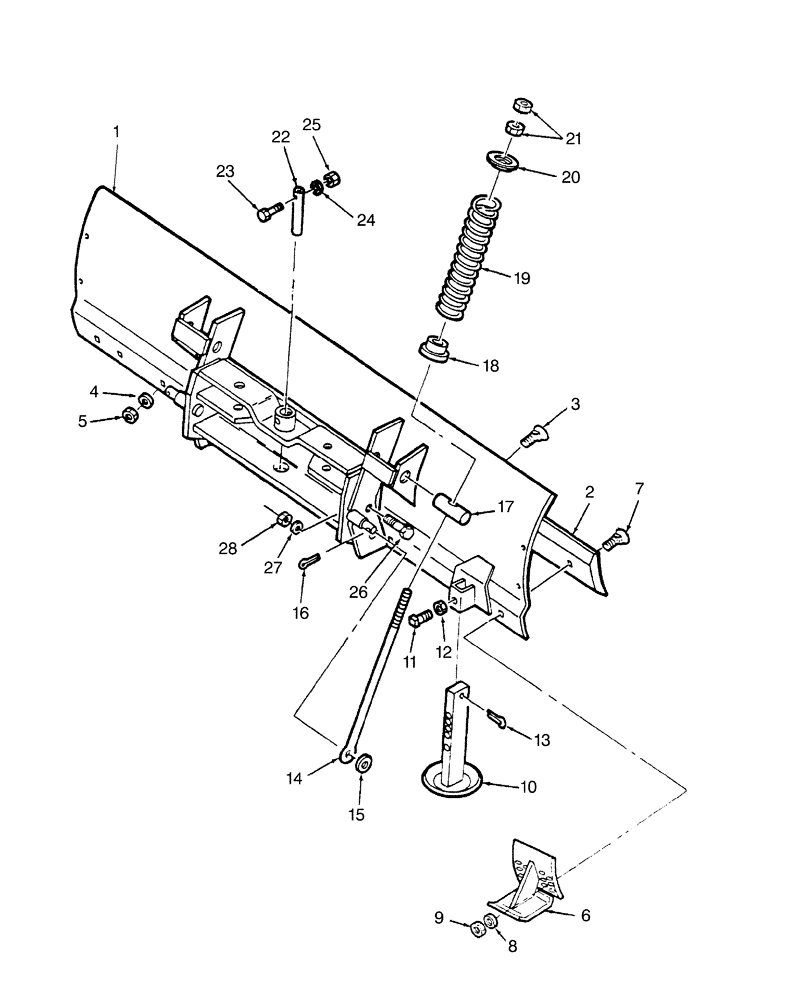

Запчасти Case IH 702C (04) - BLADES & SKID SHOES

1

W0

ORDER WHOLEGOODS

Blade Assy., 5' Moldboard,{9616208,715426001,715426016}, Includes: ARP-13707, Ref. 2, Ref. 3 thru 8, Ref. 13 thru 20, ARP-505646, Ref. 22 thru 27

1шт.

Order Wholegoods

1шт.

1

W0

ORDER WHOLEGOODS

Blade Assy., 6-1/2' Moldboard, {9616209,715427001,715427006} Includes: ARP-13708, Ref. 2, Ref. 3 & 4, Ref. 9 thru 20, ARP-505266, Ref. 22 thru 27

1шт.

Order Wholegoods

1шт.

1

W0

ORDER WHOLEGOODS

Blade Assy., 7' Moldboard, {9616210,715428001, 715428006} ARP-13687, Ref. 2, Ref. 3 & 4, Ref. 9 thru 20, ARP-505266, Ref. 22 thru 27

1шт.

Order Wholegoods

1шт.

2

SML458354

CUTTING EDGE

Edge, Cutting, 1/2" x 6" x 5 Ft.

1шт.

2

SML458359

CUTTING EDGE

Edge Cutting, 1/2" x 6" x 6-1/2 Ft.

1шт.

2

SML458357

CUTTING EDGE

Edge, Cutting, 1/2" x 6" x 7 Ft.

1шт.

3

PL

PROCURE LOCALLY

Bolt, Plow Hd., 5/8"-11 x 1-1/2", Cutting, Serial Range: Edge-Blade

3шт.

Procure Locally

1шт.

3

PL

PROCURE LOCALLY

Bolt, Plow Hd., 5/8"-11 x 1-3/4", Cutting, Serial Range: Edge-Blade

7шт.

Procure Locally

1шт.

3

PL

PROCURE LOCALLY

Bolt, Plow Hd., 5/8"-11 x 1-3/4", Cutting, Serial Range: Edge-Blade

9шт.

Procure Locally

1шт.

4

PL

PROCURE LOCALLY

Washer, Lock, 5/8", Cutting Edge to Blade 5 Ft.

3шт.

Procure Locally

1шт.

4

PL

PROCURE LOCALLY

Washer, Lock, 5/8", Cutting Edge to Blade 6-1/2 Ft.

7шт.

Procure Locally

1шт.

4

PL

PROCURE LOCALLY

Washer, Lock, 5/8", Cutting Edge to Blade 7 Ft.

9шт.

Procure Locally

1шт.

5

PL

PROCURE LOCALLY

Nut, Hex, 5/8"-11, Cutting Edge to Blade 5 Ft.

3шт.

Procure Locally

1шт.

5

PL

PROCURE LOCALLY

Nut, Hex, 5/8"-11, Cutting Edge to Blade 6-1/2 Ft.

7шт.

Procure Locally

1шт.

5

PL

PROCURE LOCALLY

Nut, Hex, 5/8"-11, Cutting Edge to Blade 7 Ft.

9шт.

Procure Locally

1шт.

6

ARPM174

KIT

Skid Shoe, Includes: Ref. 6 thru 8

1шт.

7

PL

PROCURE LOCALLY

Bolt, Plow Hd., 5/8"-11 x 2", Shoe &, Serial Range: Edge-Blade

4шт.

Procure Locally

1шт.

8

PL

PROCURE LOCALLY

Washer, Lock, 5/8", Shoe &, Serial Range: Edge-Blade

4шт.

Procure Locally

1шт.

9

PL

PROCURE LOCALLY

Nut, Hex, 5/8"-11, Shoe &, Serial Range: Edge-Blade

4шт.

Procure Locally

1шт.

10

ARP48976

SHOE

Shoe Assy., Skid

2шт.

11

PL

PROCURE LOCALLY

Screw, Set, Square Hd., 1/2"-13 x 1-1/2", Serial Range: Shoe-Blade

2шт.

Procure Locally

1шт.

12

PL

PROCURE LOCALLY

Nut, Hex, 1/2"-13, Serial Range: Shoe-Blade

2шт.

Procure Locally

1шт.

13

PL

PROCURE LOCALLY

Pin, Cotter, 1/4" x 1", Serial Range: Shoe-Blade

1шт.

Procure Locally

1шт.

As Required

1шт.

14

SML48979

BOLT

Bolt, Eye Spring, Long

2шт.

15

PL

PROCURE LOCALLY

Washer, Flat, 5/8", Eye, Serial Range: Bolt-Blade

2шт.

Procure Locally

1шт.

16

PL

PROCURE LOCALLY

Pin, Cotter, 3/16" x 1-1/2", Eye, Serial Range: Bolt-Blade

2шт.

Procure Locally

1шт.

17

ARP503913

PIN

Pin, Pivot Sping Bolt

2шт.

18

ARP505250

CUP

Cup, Spring

2шт.

19

ARP008650

SPRING

Compression

2шт.

20

ARP602108

CAP COVER

Cap, Spring

2шт.

21

PL

PROCURE LOCALLY

Nut, Hex, 5/8"-11

4шт.

Procure Locally

1шт.

22

ARP505646

PIN

Main Pivot, 1-1/4" Dia., 5 Ft.

1шт.

22

ARP505266

PIN

Main Pivot, 1-1/4" Dia., 6-1/2 & 7 Ft.

1шт.

23

PL

PROCURE LOCALLY

Bolt, HH, 1/2"-20 x 2-1/2", Serial Range: Pin-Blade

1шт.

Procure Locally

1шт.

24

PL

PROCURE LOCALLY

Washer, Lock, 1/2", Serial Range: Pin-Blade

1шт.

Procure Locally

1шт.

25

PL

PROCURE LOCALLY

Nut, Hex, 1/2"-20, Serial Range: Pin-Blade

1шт.

Procure Locally

1шт.

26

PL

PROCURE LOCALLY

Bolt, HH, 3/4"-16 x 2-1/2", Lock Blade

2шт.

Procure Locally

1шт.

27

PL

PROCURE LOCALLY

Washer, Lock, 3/4", Lock Blade

2шт.

Procure Locally

1шт.

28

PL

PROCURE LOCALLY

Nut, Hex, 3/4"-16, Lock Blade

2шт.

Procure Locally

1шт.
