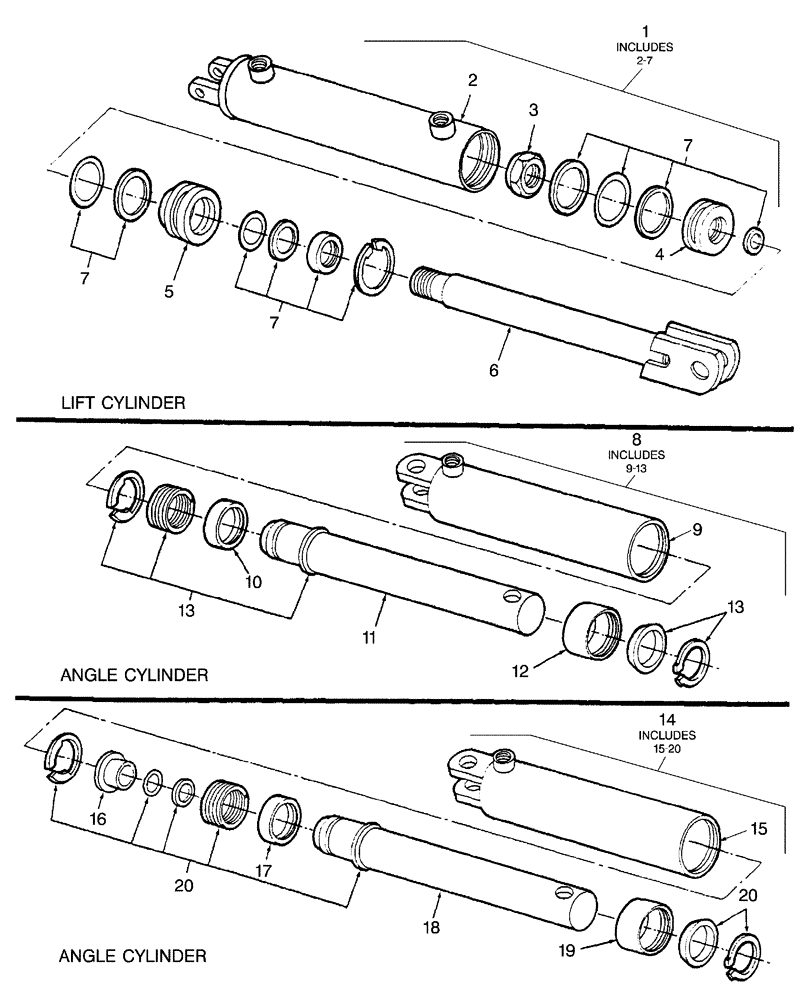

Запчасти Case IH 702C (03) - CYLINDER, LIFT & ANGLE

1

ARP48955

CYLINDER,Double Acting, 28.57mm Rod

Assy., Lift - JA, Includes: Ref. 2 thru 7

1шт.

2

ARP904320

RIGID TUBE

Cylinder 2" Dia.

1шт.

3

192014

LOCK NUT

Hex Lock, 1"-14

1шт.

4

ARP904231

PISTON

1шт.

5

ARP904232

CYLINDER HEAD

1шт.

6

SML27117

ROD

Piston, 1-1/8" Dia.

1шт.

7

SML28733

SEAL KIT

Seal, Cylinder Repair, Includes: All Seals & Retaining Ring

1шт.

8

SML26950

CYLINDER

Angle, Includes: Ref. 9 - 13

2шт.

9

SML27146

TUBE

Cylinder, 2" Dia.

1шт.

10

SML27022

PISTON

1шт.

11

ARP904520

ROD

Piston W/Retaining Ring, 1-1/2" Dia.

1шт.

12

SML28737

CYLINDER HEAD

W/Oil Seal

1шт.

13

SML28682

SEAL KIT

Packing, Includes: Packing, Oil Seal & 3 Retaining Rings

1шт.

14

SML38600

CYLINDER HEAD

Angle, Includes: Ref. 15 thru 20

2шт.

15

SML38604

RIGID TUBE

Cylinder 2-1/2" Dia.

1шт.

16

SML38601

SPACER

Piston

1шт.

17

SML38602

HYDRAULIC CYLINDER

1шт.

18

SML27149

ROD,38.1mm OD

Cylinder, 1-1/2" Dia.

1шт.

19

SML38603

GLAND

1шт.

20

ARP905490

SEAL KIT

Kit, Seal, Cylinder Repair

1шт.
