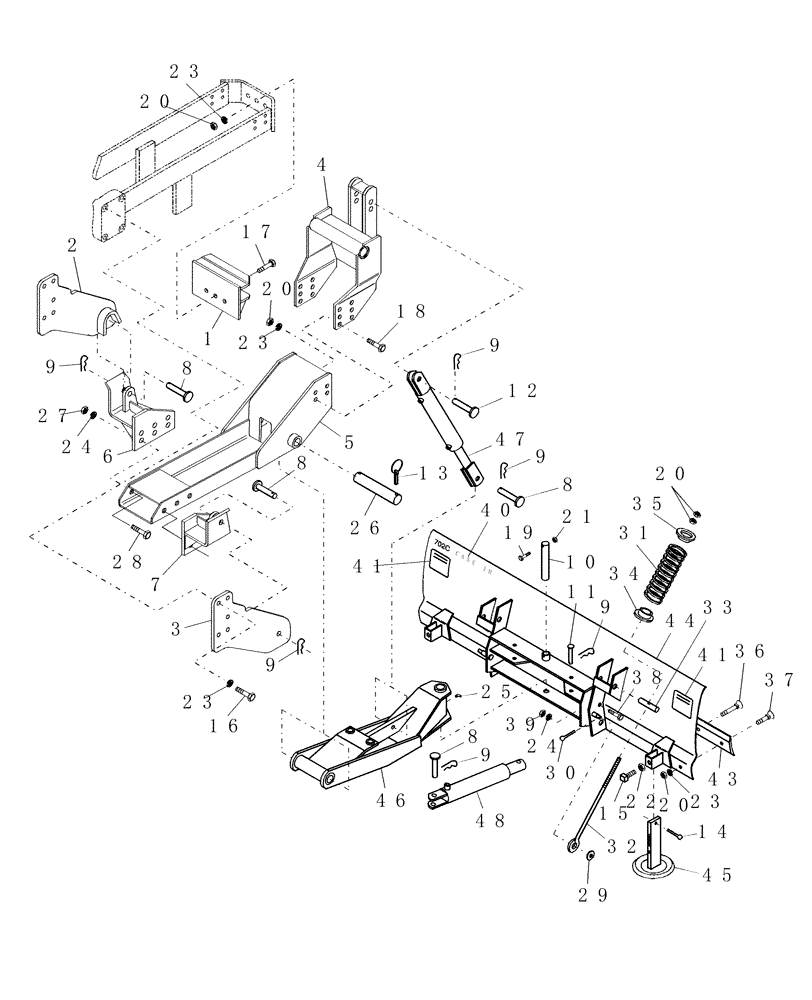

Запчасти Case IH 702C (01) - MAINFRAME & BLADE
№
Артикул
Название
Примечание
Количество
1
SML48054
BRACKET
Front Mounting
1шт.
2
SML480591
MOUNTING PLATE
Mounting, Left
1шт.
3
SML480592
MOUNTING PLATE
Mounting, Right
1шт.
4
SML48066
SUPPORT
Front
1шт.
5
SML48070
FRAME
1шт.
6
SML480801
BRACKET
Rear, Left
1шт.
7
SML480802
BRACKET
Rear, Right
1шт.
8
PL
PROCURE LOCALLY
Pin, Clevis, 3/4x2"
5шт.
9
PL
PROCURE LOCALLY
Pin, Hair, Cotter
8шт.
10
SML481631
PIN
1шт.
11
PL
PROCURE LOCALLY
Pin, Clevis, 3/4x3"
2шт.
12
PL
PROCURE LOCALLY
Pin, Clevis, 3/4x4"
1шт.
13
PL
PROCURE LOCALLY
Pin, Linch
2шт.
14
PL
PROCURE LOCALLY
Pin, Cotter, 1/4x1"
2шт.
15
PL
PROCURE LOCALLY
Screw, Set, 1/2-13x1-1/2", Square Head
2шт.
16
PL
PROCURE LOCALLY
Screw, Cap, 16-2mmx40mm
10шт.
17
PL
PROCURE LOCALLY
Screw, Cap, 5/8-11x1-3/4"
3шт.
18
PL
PROCURE LOCALLY
Screw, Cap, 5/8-11x1-1/2"
8шт.
19
PL
PROCURE LOCALLY
Screw, Cap, 1/2-13x2-1/2"
1шт.
20
PL
PROCURE LOCALLY
Nut, 5/8"
22шт.
21
PL
PROCURE LOCALLY
Nut, Lock, 1/2"
1шт.
22
PL
PROCURE LOCALLY
Nut, Jam, 1/2"
2шт.
23
PL
PROCURE LOCALLY
Washer, Lock, 5/8"
28шт.
24
PL
PROCURE LOCALLY
Washer, Lock, 3/4"
8шт.
25
PL
PROCURE LOCALLY
Fitting, Grease, 1/4-28"x45 Degree
1шт.
26
SML481641
PIN
1шт.
27
PL
PROCURE LOCALLY
Nut, 3/4"
6шт.
28
PL
PROCURE LOCALLY
Screw, Cap, 3/4x2"
6шт.
29
PL
PROCURE LOCALLY
Washer, Flat, 3/4"
2шт.
30
PL
PROCURE LOCALLY
Pin, Cotter, 3/16x1-1/2"
2шт.
31
ARP8650
SPRING
2шт.
32
ARP503912
BOLT
2шт.
33
ARP503913
PIN
2шт.
34
ARP505250
CUP
Spring
2шт.
35
ARP602108
CAP COVER
Spring
2шт.
36
PL
PROCURE LOCALLY
Bolt, Plow, 5/8-11x1-1/2"
3шт.
37
PL
PROCURE LOCALLY
Bolt, Plow, 5/8-11x2"
4шт.
38
PL
PROCURE LOCALLY
Screw, Cap, 3/4-16x2-1/2"
2шт.
39
PL
PROCURE LOCALLY
Nut, 3/4"
2шт.
40
CSE48712
DECAL
702C CASE-IH
1шт.
41
SML46543
DECAL
Warning
2шт.
43
SML458354
CUTTING EDGE
Reversible
1шт.
44
NSS
NOT SOLD SEPARAT
Blade Assy.
1шт.
45
ARP505695
SHOE
Skid Shoe
2шт.
46
SML45265
FRAME
Foward
1шт.
47
ARP099
CYLINDER
Lift
1шт.
48
SML26950
CYLINDER
Angling
2шт.
Выбрано товаров: 47
