Запчасти Case IH 72F (8-04) - LIFT CYLINDER SYSTEM, 72F BLADE, 275 TRACTOR, CYLINDER MOUNTING 245, 255 AND TRACTORS (08) - HYDRAULICS

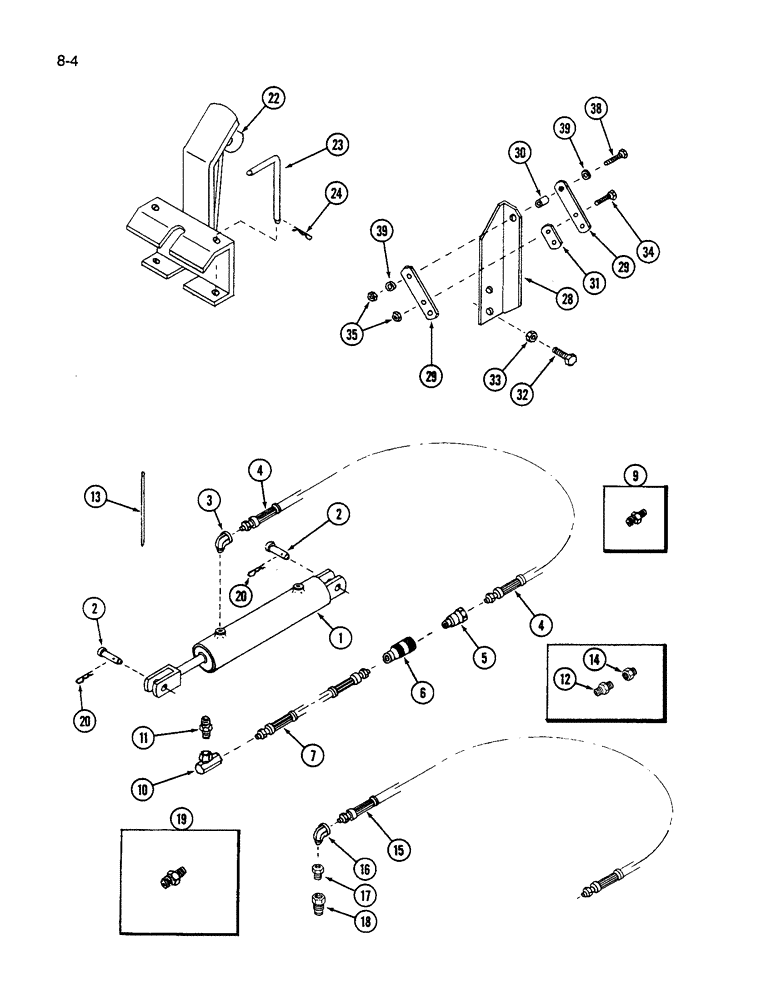

Схема запчастей Case IH 72F - (8-04) - LIFT CYLINDER SYSTEM, 72F BLADE, 275 TRACTOR, CYLINDER MOUNTING 245, 255 AND TRACTORS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

72F BLADE

1шт.

1

1958335C1

CYLINDER

ASSEMBLY - lift

1шт.

2

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

2шт.

3

1958336C1

ELBOW

- hydraulic special

1шт.

4

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

- Special 6.35 mm ID x 2285.00 mm

1шт.

5

166123C91

COUPLING

COUPLER ASSEMBLY - male

1шт.

6

166122C92

ASSEMBLY

COUPLER ASSEMBLY - female

1шт.

7

1336714C1

HYDRAULIC HOSE

HOSE - hydraulic, 14-3/4 inch long

1шт.

9

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, 3/8 inch tube

2шт.

10

1960241C1

ELBOW

ASSEMBLY - 90 degree special

1шт.

11

443979

HYD CONNECTOR

NIPPLE - straight, 1/4 inch PT

1шт.

12

443991

PIPE

CONNECTOR - straight, 3/8 to 1/4 inch

1шт.

13

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie

3шт.

14

1960272C1

FITTING

ADAPTER - male straight

1шт.

275 TRACTOR

1шт.

15

810604C1

HYDRAULIC HOSE

HOSE - hydraulic, 29 inch long 275 TRACTOR

1шт.

16

444040

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree street, 1/4 inch PT 275 TRACTOR

1шт.

17

444033

ADAPTER

BUSHING - reducer, 1/2 to 1/4 inch PT 275 TRACTOR

1шт.

18

1976515C1

COUPLING

COUPLER ASSEMBLY - hydraulic 275 TRACTOR

1шт.

19

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, 3/8 inch tube 275 TRACTOR

2шт.

20

480523R1

HAIR PIN COTTER

2-11/16", 275 Tractor

2шт.

CYLINDER MOUNTING - 245 & 255 TRACTORS

1шт.

22

1976516C1

BRACKET

- mounting, cylinder CYLINDER MOUNTING 245 AND 255 TRACTORS

1шт.

23

1958192C1

PIN

- locating CYLINDER MOUNTING 245 AND 255 TRACTORS

2шт.

24

480523R1

HAIR PIN COTTER

Cylinder mounting, 245 and 255 Tractors

2шт.

CYLINDER MOUNTING - 275 TRACTOR

1шт.

28

1976511C1

ANGLE

- anchor, cylinder 275 TRACTOR

1шт.

29

1976512C1

STRAP

- anchor 275 TRACTOR

2шт.

30

85490H

SPACER

- strap 275 TRACTOR

1шт.

31

1976513C1

STRAP

- anchor 275 TRACTOR

1шт.

32

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

275 tractor Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

33

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, , 275 Tractor 5/8"-11, GC

2шт.

34

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

275 Tractor Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

35

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC 275 TRACTOR

2шт.

38

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

275 Tractor Hex, 3/8"-16 x 1 1/2", G5

1шт.

39

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch), 275 Tractor 3/8"

2шт.

Выбрано товаров: 36
