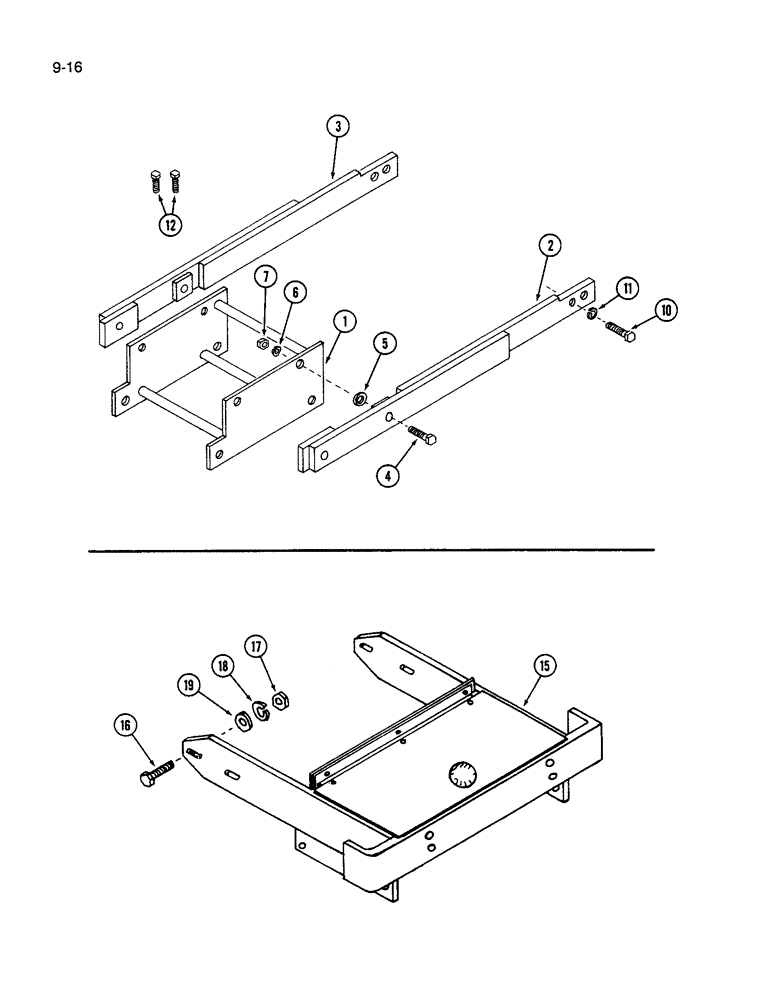

Запчасти Case IH 72F (9-16) - MOUNTING SUPPORT, 72F BLADE, 245 AND 255 TRACTORS, 275 TRACTOR (09) - CHASSIS

245 & 255 TRACTORS

1шт.

1

1958467C1

ANCHOR

- mounting, front

1шт.

2

1976408C1

SUPPORT

FRAME - support, left

1шт.

3

1976409C1

SUPPORT

FRAME - support, right

1шт.

4

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

4шт.

5

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 7/16 inch

4шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

129-107

NUT,5/8"-11, G5

4шт.

10

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- mounting, frame

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

1954987C1

BOLT,Hex, M10 x 1.25 x 50mm

- connecting

2шт.

275 TRACTOR

1шт.

15

1976514C1

FUNNEL

FRAME - front 275 TRACTOR

1шт.

16

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

275 Tractor Hex, 1/2"-13 x 1 3/4", G5

4шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

275 Tractor 1/2"-13, G5

4шт.

18

92-8

LOCK WASHER,1/2"

- 275 TRACTOR 1/2"

4шт.

19

95-10

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch 275 TRACTOR

4шт.
