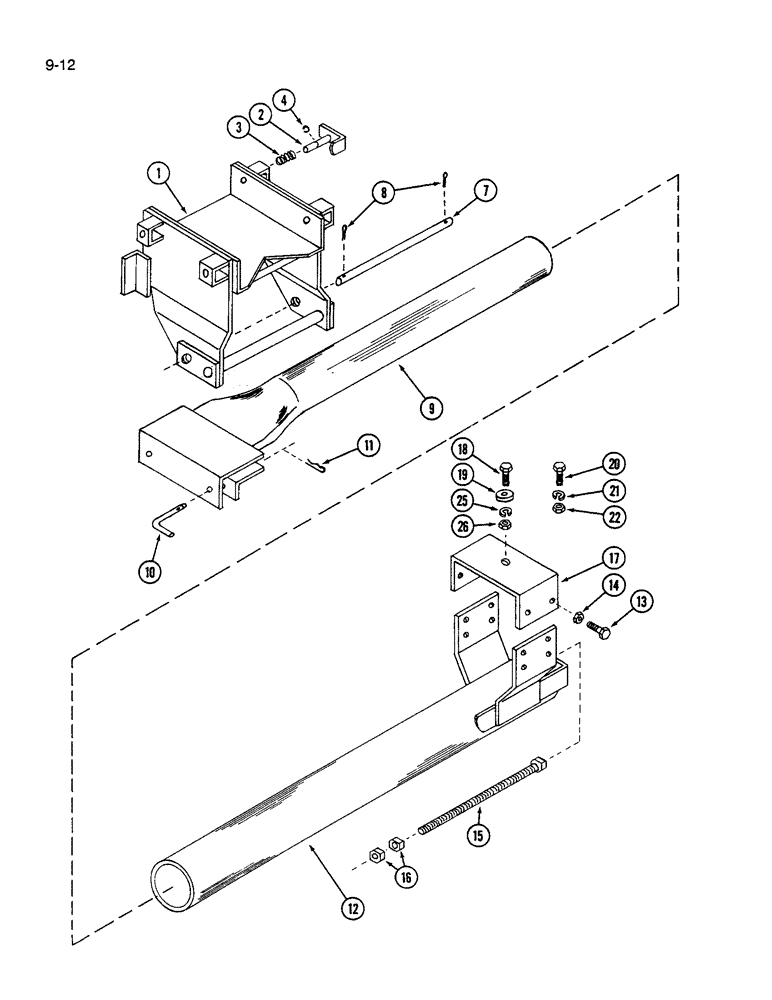

Запчасти Case IH 72F (9-12) - MAIN FRAME, 72F BLADE (09) - CHASSIS

1

1976505C1

BRACKET

- mounting, front

1шт.

2

1958440C1

PIN

ASSEMBLY - quick release

4шт.

3

1958442C1

SPRING

- tension

4шт.

4

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

7

1976506C1

PIN

- pivot, tilt

1шт.

8

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.

9

1976507C1

FRAME

- mounting, front

1шт.

10

1958230C1

PIN

- roll, locating

1шт.

11

407207R1

CLIP

PIN - hair, Package of 50

2шт.

12

1976508C1

FRAME

- mounting, rear

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

14

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

15

1976509C1

BOLT

- adjusting

1шт.

16

9414002

NUT,1"-8, GC

- hex lock, 1 inch

2шт.

17

1976510C1

BRACKET

- mounting

1шт.

18

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

19

1958227C1

WASHER

- thrust

1шт.

20

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

21

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

22

129-108

NUT,3/4"-10, G5

1шт.

25

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

129-107

NUT,5/8"-11, G5

1шт.
