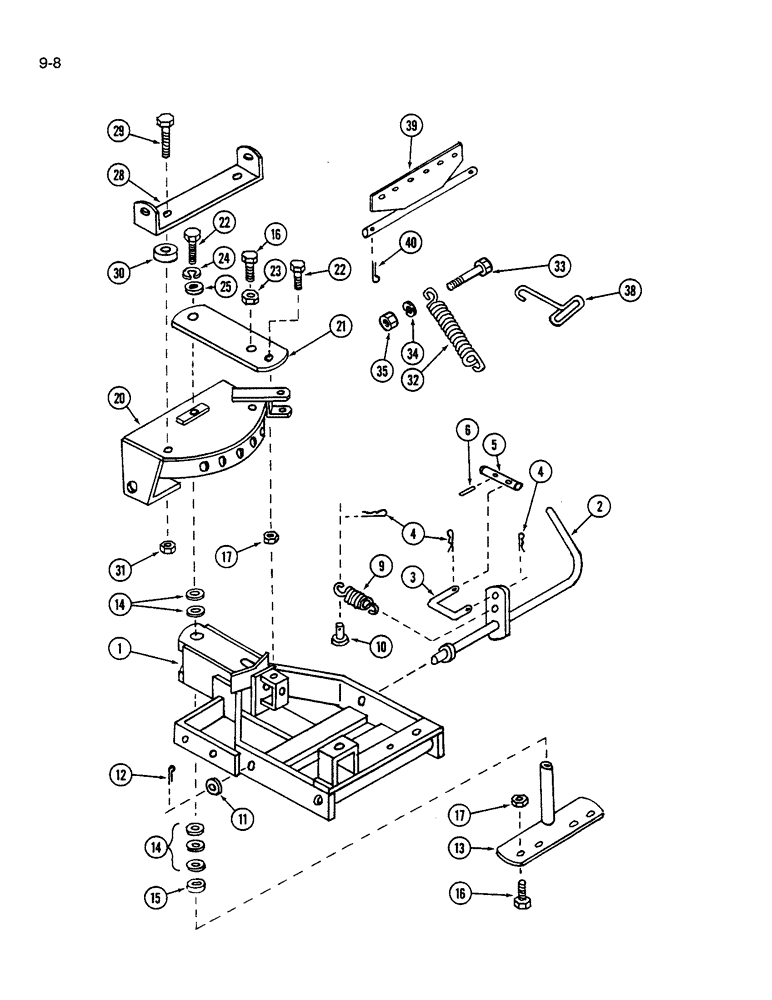

Запчасти Case IH 72F (9-08) - A-FRAME, 72F BLADE (09) - CHASSIS

1

1976495C1

FRAME

A-FRAME - mounting

1шт.

2

1960461C1

LEVER

- lock

1шт.

3

1976503C1

ROD

- lock

1шт.

4

407207R1

CLIP

PIN - hair, Package of 50

3шт.

5

1976500C1

PIN

- lock

1шт.

6

364436R1

PIN,3/16" x 1", Coiled

1шт.

9

1976501C1

SPRING

- tension

1шт.

10

1976502C1

PIN

- head, spring

1шт.

11

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

12

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

13

1976497C1

PIN

- pivot

1шт.

14

1954979C1

WASHER

- pivot, 1/32 inch thick

5шт.

15

1954930C1

WASHER

- pivot, 5/32 inch thick

1шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

17

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

5шт.

20

1976496C1

TERMINAL BOX

PIVOT - blade

1шт.

21

1976498C1

STRAP

PLATE - support

1шт.

22

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

23

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

25

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 5/32 inch

1шт.

28

1976499C1

ANCHOR

BRACKET - anchor, spring

1шт.

29

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

30

1960460C1

SPACER

- bracket

2шт.

31

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

32

1960268C1

SPRING

- blade tension

6шт.

33

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

34

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

35

129-108

NUT,3/4"-10, G5

2шт.

38

1960464C1

HOOK

- spring mounting

1шт.

39

1976504C1

ANCHOR

- spring

1шт.

40

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.
