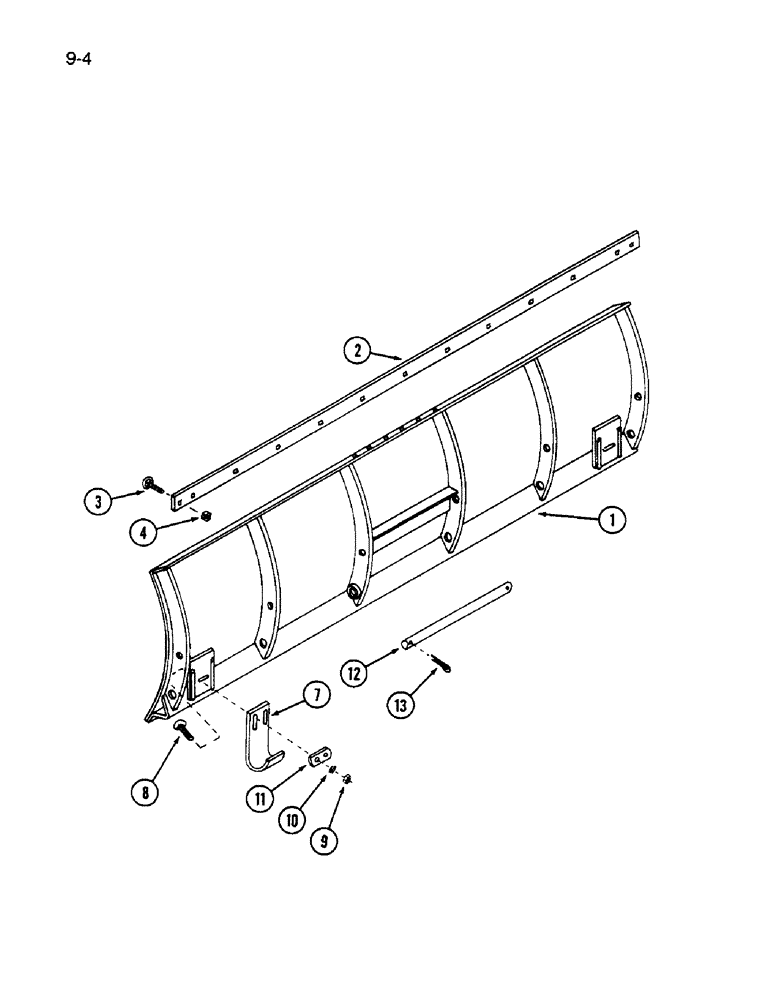

Запчасти Case IH 72F (9-04) - BLADE, 72F BLADE (09) - CHASSIS

1

1976519C1

BLADE

- dozer

1шт.

2

1976520C1

EDGE

BLADE - cutting

1шт.

3

111-256

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/4", G5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

13шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

13шт.

7

1976521C1

SHOE

- skid, blade

2шт.

8

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

4шт.

9

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock,3/8 inch NC

4шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

4шт.

11

1976522C1

STRAP

- hanger

2шт.

12

1976523C1

PIN

- pivot, tilt

1шт.

13

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.
