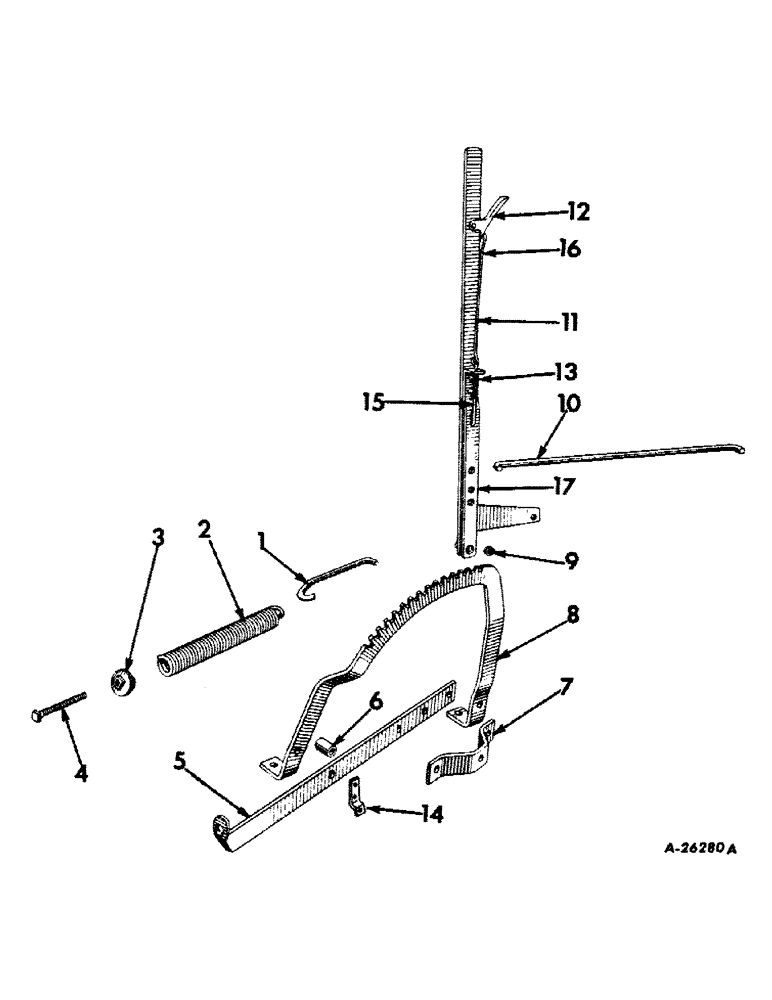

Запчасти Case IH 60 (G-7) - MASTER CONTROL LEVER SPECIAL - 60 LEVELING AND GRADER BLADE

1

29232B

LINK, lifting spring

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), 3/16" x 1"

1шт.

2

M1430

VALVE SPRING

SPRING, raising

1шт.

3

M1425

PLUG

spring

1шт.

4

459549R1

BOLT

1/2-13 x 4-3/4 hex-hd mach

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

5

28859B

ANCHOR, spring

1шт.

6

PO15823

SPACER

1шт.

7

28861B

SUPPORT, lever

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

15073R1

BOLT, 1/2-13 x 2 crg.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

8

28854B

QUADRANT

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

1шт.

15658R1

PLOW BOLT,#3, 1/2" - 13 x 2 3/4", Gr 2

BOLT, 1/2-13 x 2-3/4 plow

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

9

872534R1

SPACER,1/2" Pipe x 3/8"

BUSHING

1шт.

10

650424R3

LINK, rockshaft

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4" 3/16" x 1 1/4"

2шт.

11

28869B

LEVER ASSY.

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 ov-hd

2шт.

17650R1

BOLT, 1/2-13 x 3-1/4 hex-hd mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

102637

NUT,1/2"-13, G5

1шт.

12

25549B

LATCH, hand, 1960

1шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 x 5/8 ov-hd

1шт.

13

PO34

SPRING

lever plunger, 1960

1шт.

14

650821R1

STRAP, axle brace hanger, 1960

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8-11 x 2-1/2 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

15

26668B

BOLT, lever spring, 1960

1шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

16

S1998

ROD, latch, 1960

1шт.

17

PO22352

GUIDE, spring, 1960

1шт.
