(G-6) - FRONT ROCKSHAFT AND LIFTING LINK - 60 LEVELING AND GRADER BLADE

Запчасти Case IH 60 (G-6) - FRONT ROCKSHAFT AND LIFTING LINK - 60 LEVELING AND GRADER BLADE

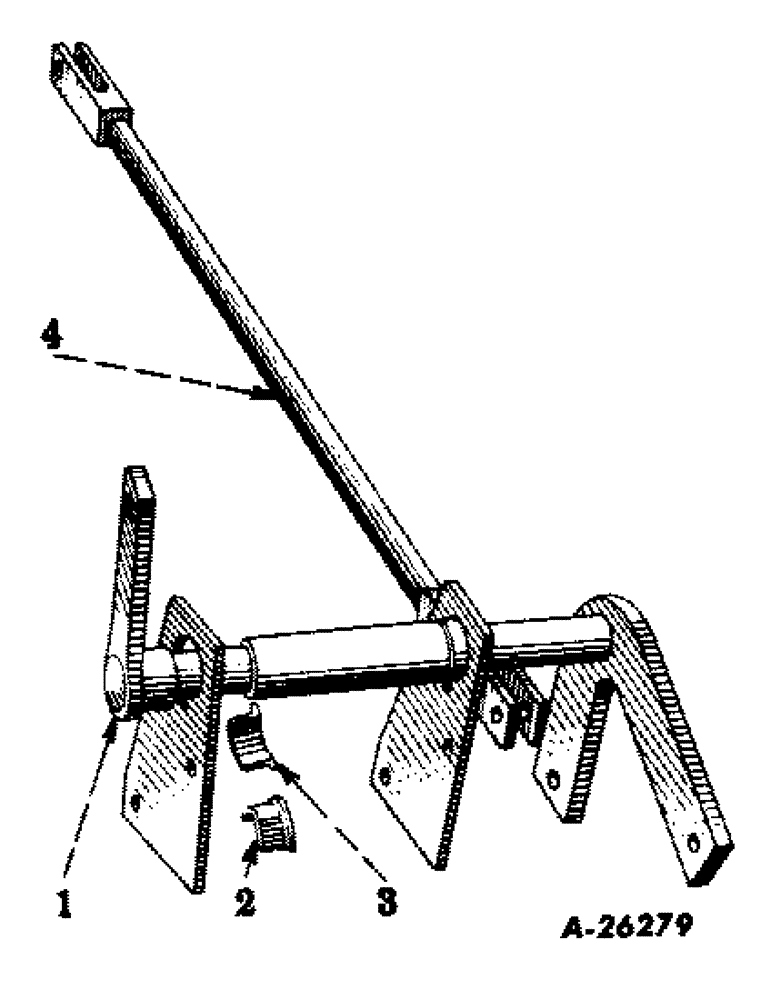

Схема запчастей Case IH 60 - (G-6) - FRONT ROCKSHAFT AND LIFTING LINK - 60 LEVELING AND GRADER BLADE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

650365R93

ROCKSHAFT

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8-11 x 1-3/4 hex-hd mach

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

1691B

BEARING

upper half rockshaft

2шт.

3

1692B

BEARING

lower half rockshaft

2шт.

4

650366R91

ROD, connecting

1шт.

Выбрано товаров: 6
