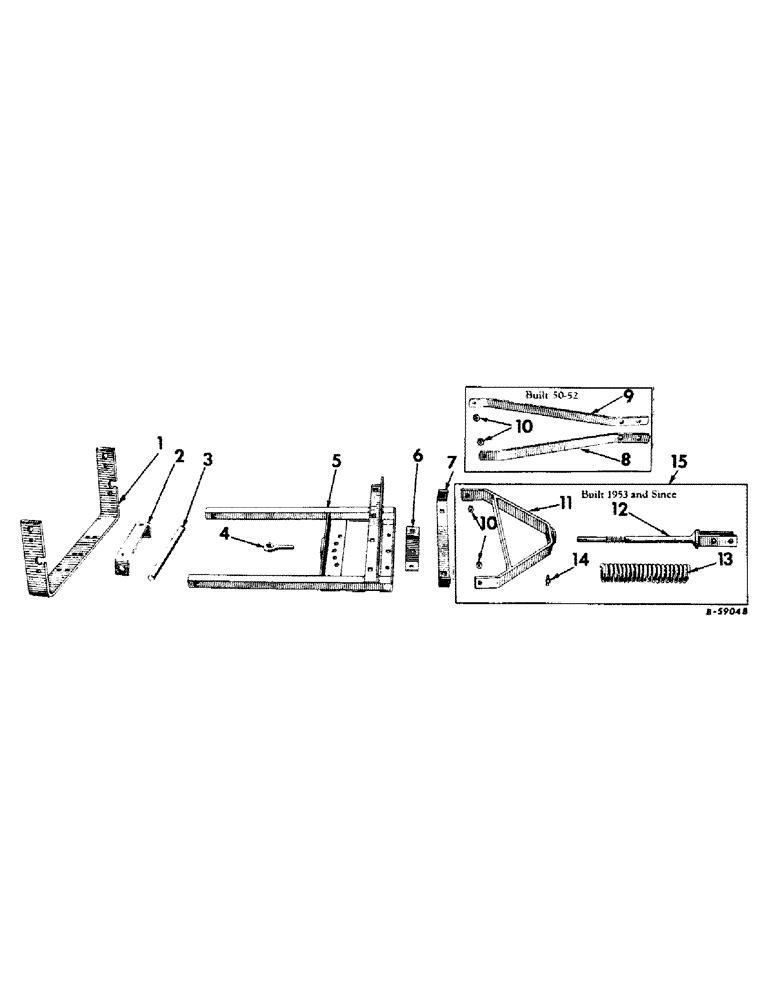

Запчасти Case IH 60 (G-5) - LIFTING ARM AND STRAPS - 60 LEVELING AND GRADER BLADE

1

650308R3

DRAWBAR, substitute

1шт.

17501R1

BOLT, 3/4-10 x 1-3/4 hex-hd mach

2шт.

373339R1

BOLT,Hex, 3/4" - 10 x 1.38"

quick attachable drawbar

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

5/8-11 x 3-1/4 hex-hd mach, To bolt substitute drawbar to tractor

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

2

650305R1

BRACKET, mounting pivot axle

1шт.

3

650298R2

AXLE, pivot

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

4

650294R2

ROD

PIN, index

1шт.

5

650346R91

ARMS ASSY, lifting

1шт.

6

650323R1

STRAP, pivot angle anchor

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex.

2шт.

17525R1

BOLT

5/8-11 x 2 hex-hd mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102637

NUT,1/2"-13, G5

2шт.

102639

NUT,5/8"-11, G5

1шт.

7

650311R1

BRACKET, lifting

1шт.

15058R1

BOLT, 5/8-11 x 1-3/4 sq-nk crg

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

8

650310R1

STRAP, right lifting

1шт.

9

650309R1

STRAP, left lifting

1шт.

10

650336R1

BUSHING, lifting strap

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 C-Z hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

102637

NUT,1/2"-13, G5

2шт.

11

651277R92

STRAP ASSY, lifting

1шт.

12

651276R92

ROD ASSY, pressure spring

1шт.

272321

SPRING

NUT, 7/8 slt hex.

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

13

651275R1

SPRING, pressure

1шт.

14

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

pressure spring rod

1шт.

15

651278R91

STRAP ASSY, pressure spring lifting, May be used in lieu of strap 650309R1 and strap 650310R1

1шт.
