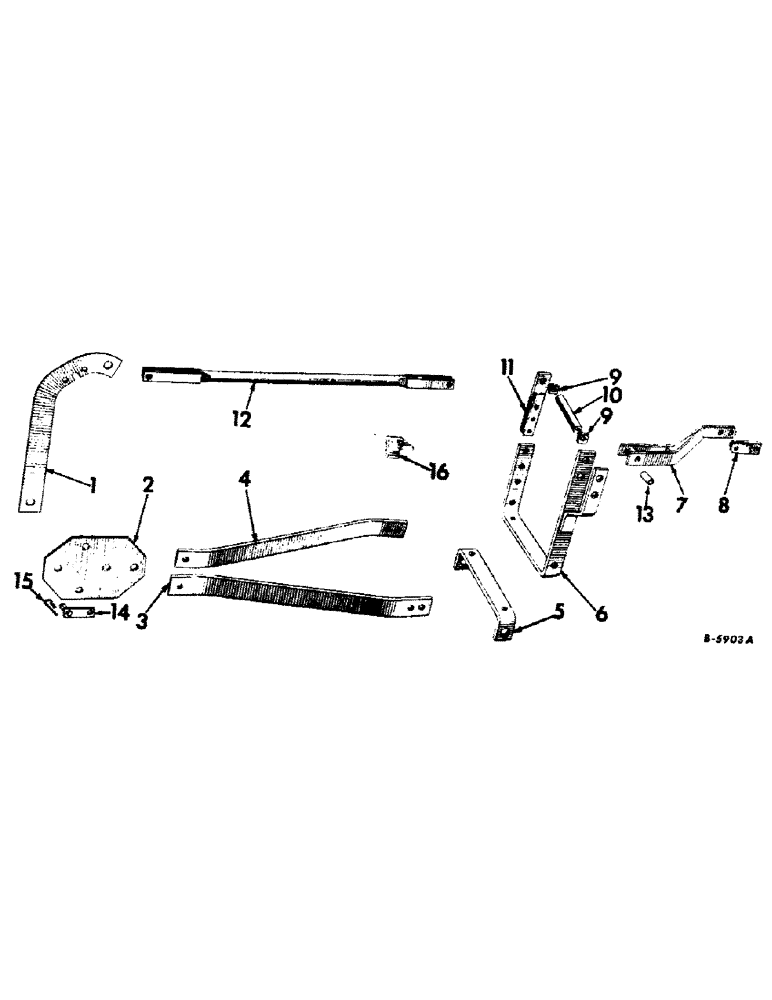

Запчасти Case IH 60 (G-4) - MOUNTING FRAME AND LIFTING LEVER - 60 LEVELING AND GRADER BLADE

1

650312R1

ARM, hydraulic extension

1шт.

2

650307R3

PLATE, pivot axle brace mounting

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8-11 x 1-3/4 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

650314R2

BRACE, axle hanger right

1шт.

17552R1

BOLT, 5/8-11 x 2-1/4 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

4

650313R2

BRACE, axle hanger left

1шт.

5

650305R1

BRACKET, pivot axle mounting

1шт.

6

650347R91

HANGER ASSY, pivot axle

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8-11 x 1-3/4 hex-hd mach

2шт.

17525R1

BOLT

5/8-11 x 2 hex-hd mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

102639

NUT,5/8"-11, G5

4шт.

7

650345R91

LEVER ASSY, front lifting

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

PO28730

PIN

3/4 x 1-7/8 dld std-hd

1шт.

8

650352R92

CLEVIS ASSY, flexible

1шт.

9

650306R1

BAR

SPACER, axle hanger pivot bolt

2шт.

10

650340R1

LOCATOR, hanger bolt spacer

1шт.

18144R1

BOLT, 3/4-10 x 18 hex-hd mach

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

1шт.

11

650348R91

SPLICE ASSY, pivot axle hanger adjustment

1шт.

17552R1

BOLT, 5/8-11 x 2-1/4 hex-hd mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

12

650349R91

ROD ASSY, connecting

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

PO28730

PIN

3/4 x 1-7/8 dld std-hd

2шт.

13

650337R1

SPACER

BUSHING, lifting lever

1шт.

14

651880R91

BRACKET ASSY, stowage, 1960

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8-11 x 1-3/4 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

520175R1

CLIP

PIN, quick attachable cot.

1шт.

16

60394DX

BRACKET ASSY, front lamp post, 1967

1шт.

PO28730

PIN

3/4 x 1-7/8 dld std-hd

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.
