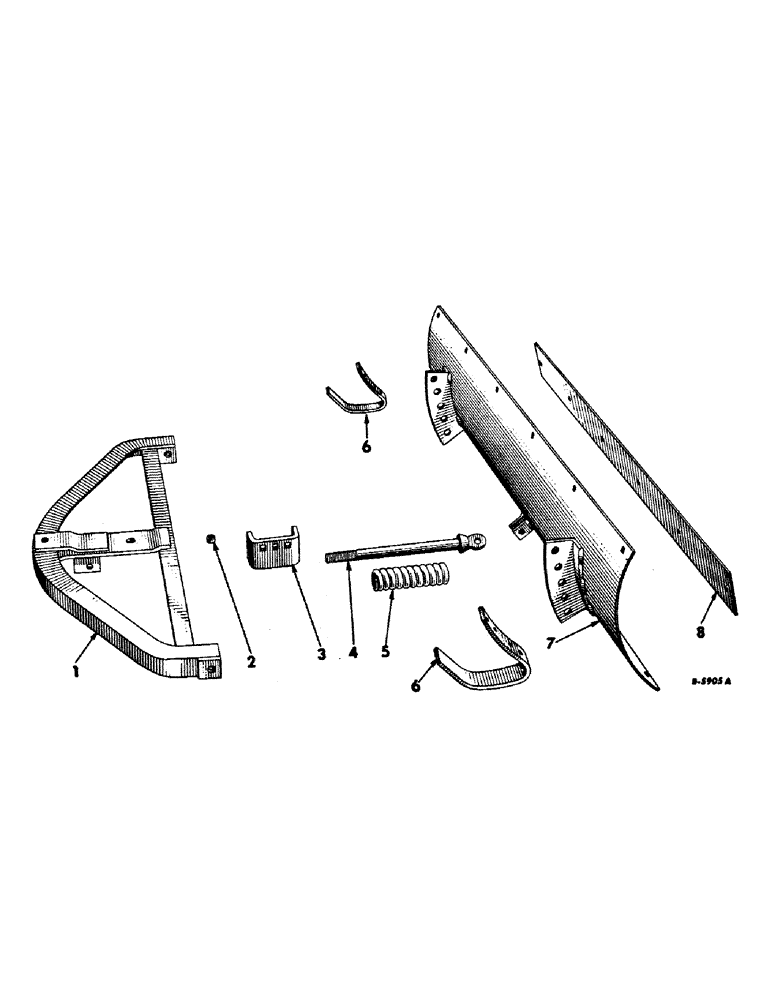

Запчасти Case IH 60 (G-3) - BLADE AND RELIEF SPRING - 60 LEVELING AND GRADER BLADE

1

650350R91

ANGLE ASSY, blade support

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

650355R1

AXLE PIN

PIN, 3/4 x 3-3/4 dld std-hd

2шт.

2

650338R1

BUSHING

blade support angle pivot plate

1шт.

3

650318R1

BAR, adjuster

1шт.

12490R1

BOLT, 5/8-11 x 1-3/4 dld sq-nk crg

1шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .074 C-Z

3шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11 slt hex.

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

4

650297R1

ROD, spring support

1шт.

220083

NUT,1"-8, G5

1-8 hex.

1шт.

218445

NUT,Jam, 1"-8, G5

1-8 hex. jam

1шт.

5

650343R1

SPRING, relief

1шт.

6

650344R1

SHOE, blade wearing

2шт.

7

650351R91

BLADE ASSY

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN, 5/8 x 1-3/4 dld std-hd

1шт.

8

650329R2

EDGE, cutting

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 sq-nk crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

102637

NUT,1/2"-13, G5

6шт.
