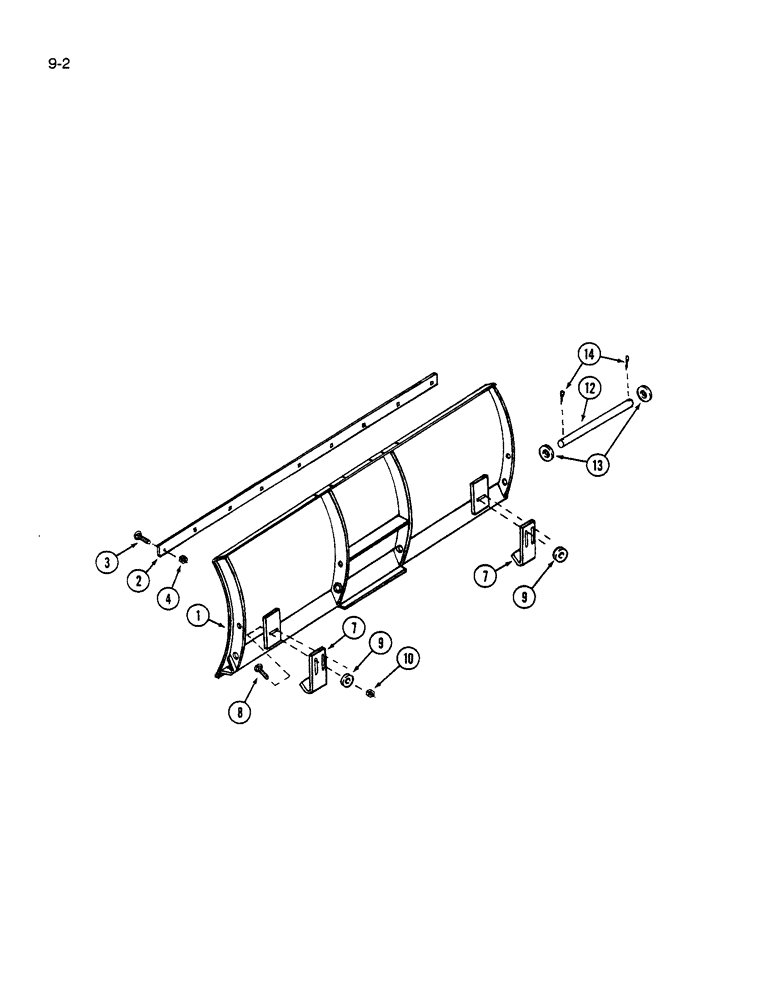

Запчасти Case IH 54F (9-02) - BLADE, 54F BLADE (09) - CHASSIS

1

1958366C1

HALF BLADE

BLADE - utilty

1шт.

2

1958491C1

BLADE

- wear

1шт.

3

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

9шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

9шт.

7

1958492C1

SHOE

- skid

2шт.

8

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

4шт.

9

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch

4шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

12

1960273C1

PIN

- tilt

1шт.

13

NLS

NO LONGER SERVICED

- flat, 13/16 x 1-1/2 x 7/64 inch

2шт.

14

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.
