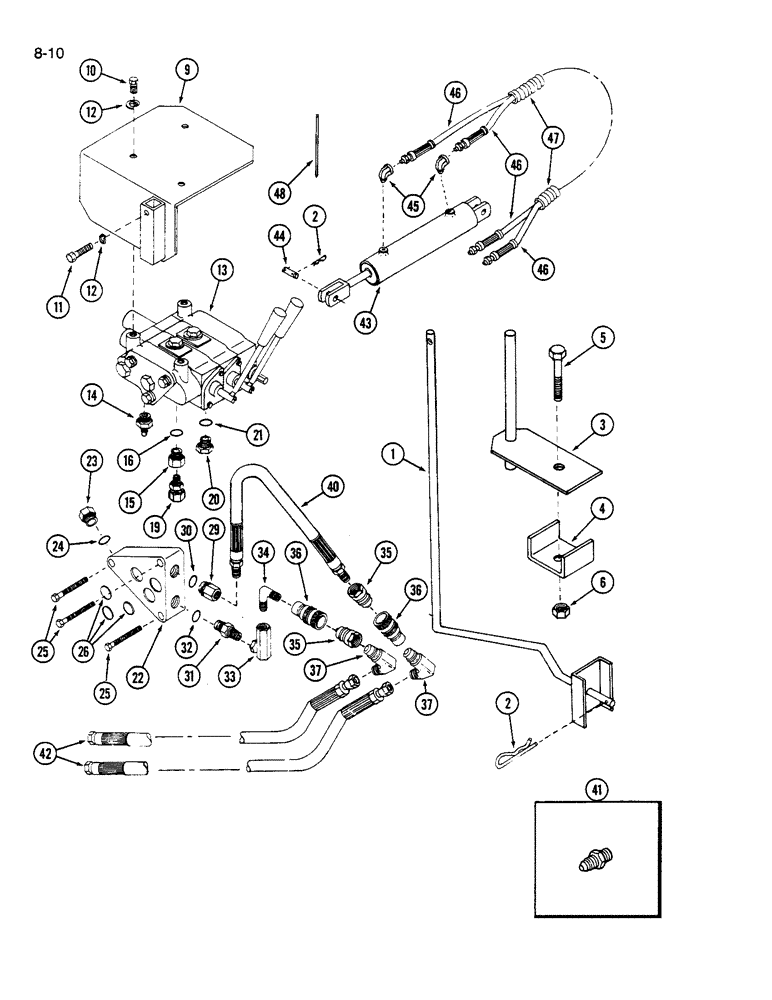

Запчасти Case IH 54F (8-10) - BLADE ANGLE HYDRAULIC SYSTEM, 54F BLADE, 235 TRACTOR (08) - HYDRAULICS

1

1978692C1

ROD

SUPPORT - mounting, valve

1шт.

2

480523R1

HAIR PIN COTTER

3шт.

3

1978693C1

BRACE

- support, valve

1шт.

4

1976580C1

CHANNEL

- support

1шт.

5

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

6

9411656

NUT - hex lock, 3/8 inch NC

1шт.

9

1978694C1

PLATE

- mounting, valve

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

1976526C1

VALVE

ASSEMBLY - control

1шт.

14

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR - straight, 3/8 to 1/2 inch thread

2шт.

15

1960272C1

FITTING

ADAPTER ASSEMBLY - straight, 3/4-16 thread x 1/4 inch PT

3шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER ASSEMBLY - swivel, 1/4 x 1/4 inch PT

3шт.

20

214389

PLUG,3/4" - 16 ORB

Assy, 1/2" tube Hex Hd, 3/4"-16 ORB

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

1960659C1

VALVE

BLOCK - adapter, hydraulic

1шт.

23

76349

PLUG,9/16" - 18 ORB

Assy, 3/8 tube Hex Hd, 9/16"-18 ORB

1шт.

25

30521R1

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, M8 x 1.25 x 75 mm

3шт.

29

218-5090

ADAPTER

CONNECTOR ASSEMBLY - straight, 9/16-18 thread x 1/4 inch PT

1шт.

31

218-5443

FITTING

CONNECTOR ASSEMBLY - straight, 9/16-18 thread x 1/4 inch PT

1шт.

33

1960241C1

ELBOW

ASSEMBLY - 90 degree swivel, 1/4 inch PT

1шт.

34

217-1225

ELBOW,90 Degree, 1/4"-18 Male

- 90 degree pipe, 1/4 inch PT

1шт.

35

166123C91

COUPLING

COUPLER ASSEMBLY - male, hydraulic

2шт.

36

166122C92

ASSEMBLY

COUPLER ASSEMBLY - female, hydraulic

2шт.

37

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 thread x 1/4 inch PT

2шт.

40

1336840C1

HYDRAULIC HOSE

HOSE - hydraulic, 25 inch (Initial service requires

1шт.

2 of Ref 41)

1шт.

41

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR -straight, 9/16-18 thread 1/4 inch PT

1шт.

42

195504C2

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 78 inch

2шт.

43

1958335C1

CYLINDER

ASSEMBLY - angle, blade

1шт.

44

1958393C1

PIN

ASSEMBLY - mounting

2шт.

45

444040

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree street, 1/4 inch PT

2шт.

46

139517C1

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 72 inch (Initial service requires

1шт.

2 of Ref 41)

2шт.

47

436897C1

CONDUIT - hose, 24 inch

1шт.

48

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

3шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal

3шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal

1шт.
