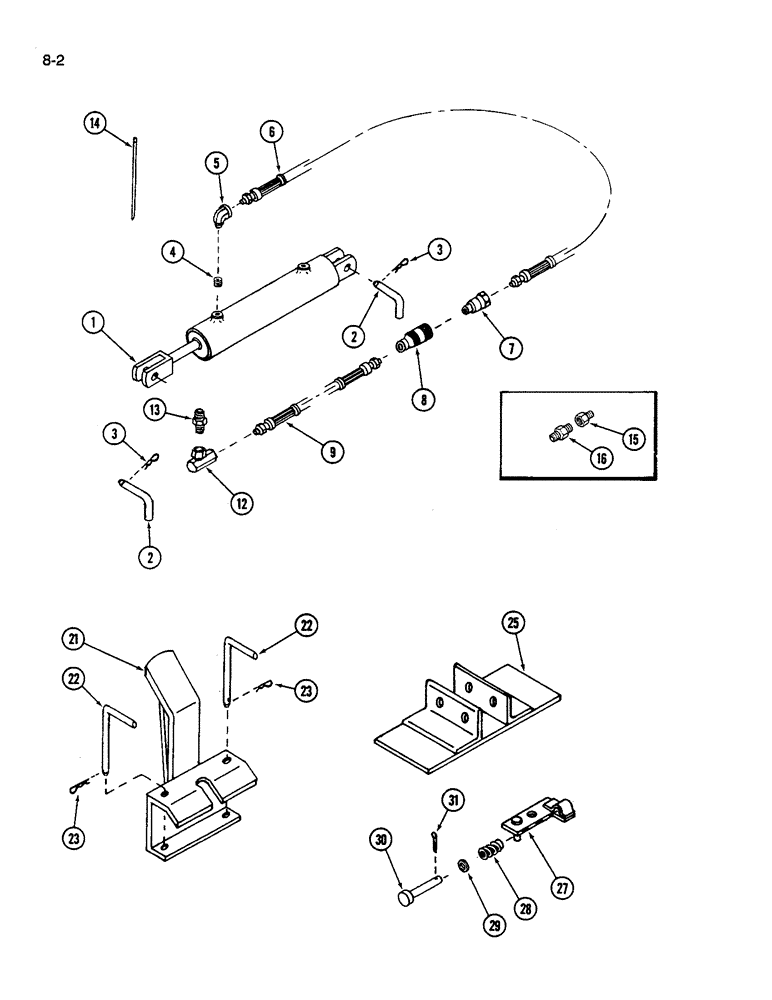

Запчасти Case IH 54F (8-02) - LIFT CYLINDER SYSTEM, 54F BLADES, CYLINDER MOUNTING (08) - HYDRAULICS

1

1958335C1

CYLINDER

ASSEMBLY - lift

1шт.

2

1960472C1

PIN

- locating

2шт.

3

480523R1

HAIR PIN COTTER

2шт.

4

1958337C1

ORIFICE

- flow

1шт.

5

1958336C1

ELBOW

- hyraulic special

1шт.

6

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

6.35 mm ID x 2285.00 mm

1шт.

7

166123C91

COUPLING

COUPLER ASSEMBLY - male

1шт.

8

166122C92

ASSEMBLY

COUPLER ASSEMBLY - female

1шт.

9

1336714C1

HYDRAULIC HOSE

HOSE - hydraulic, 14-3/4 inch long

1шт.

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - hose (Not shown)

2шт.

12

1960241C1

ELBOW

- special

1шт.

13

443979

HYD CONNECTOR

CONNECTOR - straight

1шт.

14

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

3шт.

15

1960272C1

FITTING

ADAPTER - male straight

1шт.

443991

PIPE

CONNECTOR - straight

1шт.

16

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, 3/8 inch tube

4шт.

21

1958331C1

BRACKET

- cylinder mounting

1шт.

22

1958192C1

PIN

- locating CYLINDER MOUNTING

2шт.

23

480523R1

HAIR PIN COTTER

Cylinder mounting

2шт.

25

1960471C1

STOP

- hitch down CYLINDER MOUNTING

1шт.

27

1958362C1

BRACKET

- lift control CYLINDER MOUNTING

1шт.

28

1958364C1

SPRING

- compression CYLINDER MOUNTING

1шт.

29

195-102

WASHER,1/4"

- flat, 17/32 x 1-1/16 x 47/64 inch CYLINDER MOUNTING

1шт.

30

1958363C1

PIN

- clevis CYLINDER MOUNTING

1шт.

31

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , Cylinder mounting 3/32" x 3/4"

1шт.
