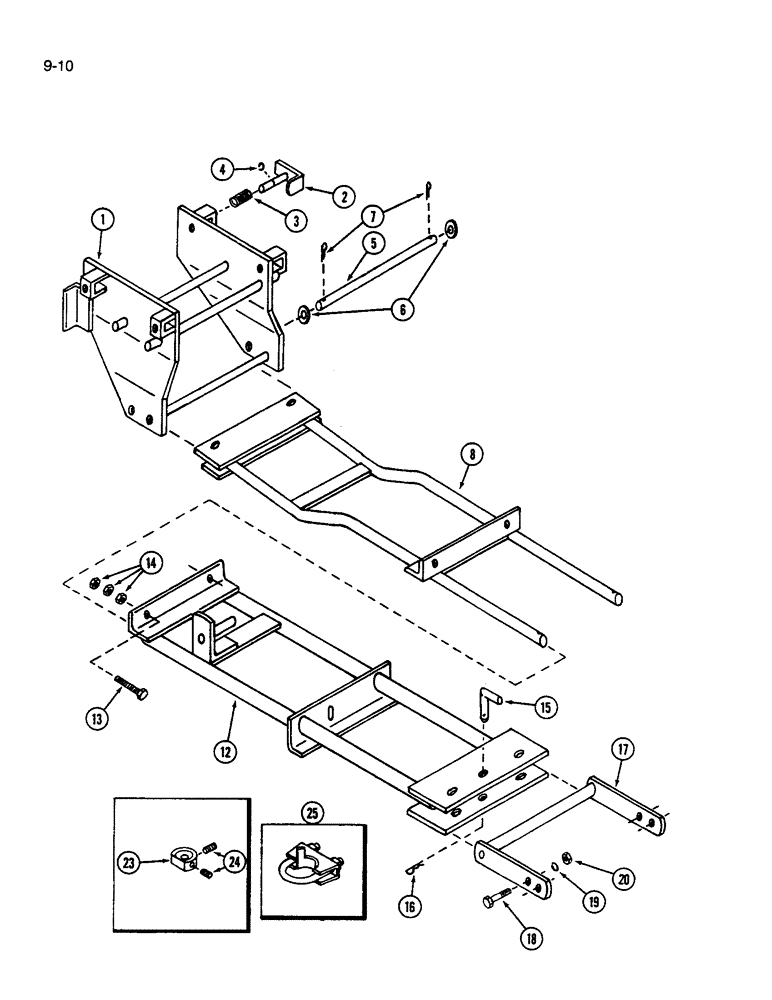

Запчасти Case IH 54F (9-10) - MAIN FRAME, 54F BLADE (09) - CHASSIS

1

1960465C1

BRACKET

FRAME ASSEMBLY - mounting main, front

1шт.

2

1958440C1

PIN

ASSEMBLY - quick release

4шт.

3

1958442C1

SPRING

- compression

4шт.

4

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

5

1958358C1

PIN

- tilt

1шт.

6

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

2шт.

7

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

8

1960468C1

FRAME

- mounting, front

1шт.

12

1960467C1

FRAME

- mounting main, rear

1шт.

13

1960470C1

BOLT

- frame,retaining

2шт.

14

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam,5/8 inch NC

6шт.

15

1958230C1

PIN

- locating

1шт.

16

407207R1

CLIP

PIN - hair, Package of 50

1шт.

17

1960469C1

BRACKET

- mounting, rear

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

23

1954998C1

SPACER

- wheel stop

1шт.

24

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - hex socket set, 3/8 NC x 3/8 inch

2шт.

25

1954999C1

STOP

- wheel

1шт.
