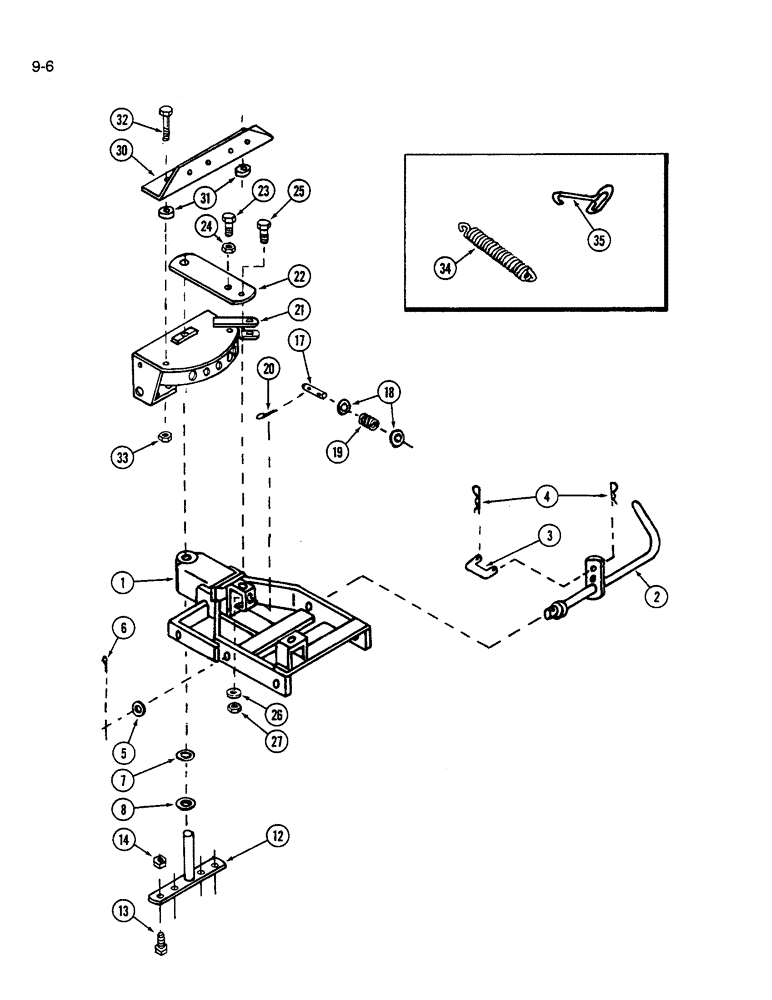

Запчасти Case IH 54F (9-06) - A-FRAME, 54F BLADE (09) - CHASSIS

1

1960277C1

FRAME ASSY

A-FRAME - blade mounting

1шт.

2

1960461C1

LEVER

- lock

1шт.

3

1960462C1

LINK

ROD - lock link

1шт.

4

407207R1

CLIP

PIN - hair, Package of 50

2шт.

5

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

6

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

7

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

8

NLS

NO LONGER SERVICED

- flat, 13/16 x 1-1/2 x 7/64 inch

1шт.

12

1960276C1

PIN ASSY.

PIN - pivot

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

14

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

17

1960278C1

PIN

- lock

1шт.

18

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

2шт.

19

1958442C1

SPRING

- lock pin

1шт.

20

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21

1960274C1

BOX

PIVOT - blade

1шт.

22

1960275C1

STRAP

PLATE - support

1шт.

23

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

24

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

1шт.

25

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

30

1960279C1

ANGLE

BRACKET - stop pivot

1шт.

31

1960460C1

SPACER

- stop pivot

2шт.

32

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

33

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

34

1960268C1

SPRING

- blade tension

4шт.

35

1960464C1

HOOK

- spring mounting

1шт.
