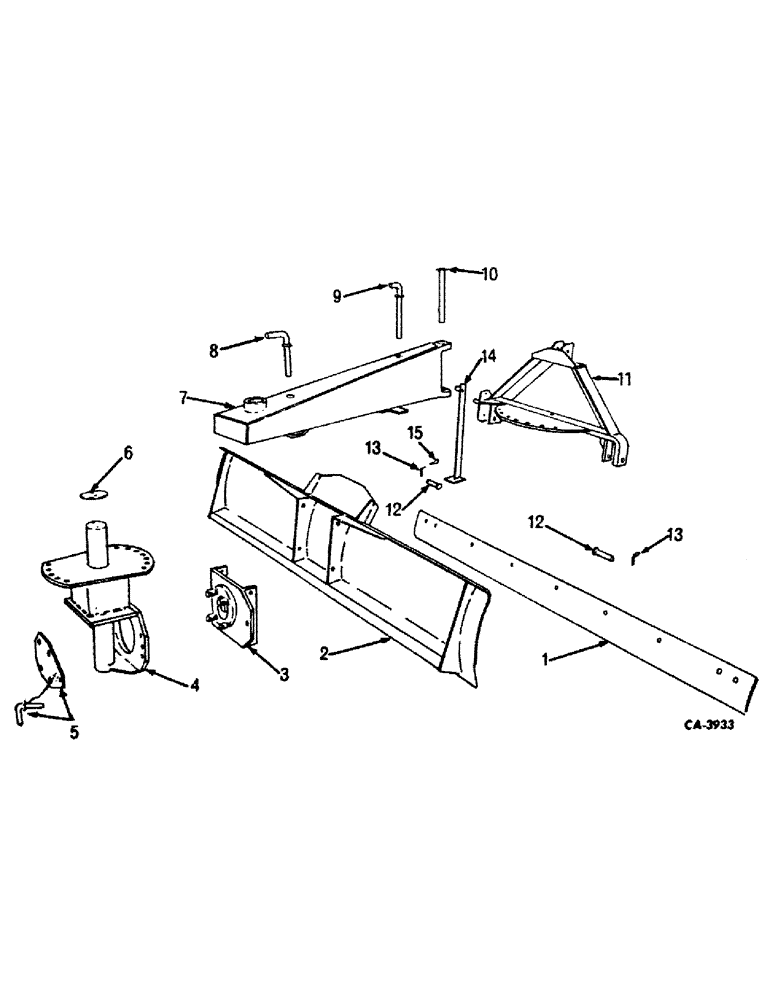

Запчасти Case IH 54 (L-6) - REAR MOUNTED GRADER BLADE, MEDIUM DUTY, MODEL 53, HEAVY DUTY, MODEL 54

1

780384R1

CUTTING, edge, Model 53 and 54

1шт.

15601R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 plow

9шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

102639

NUT,5/8"-11, G5

9шт.

2

780375R1

MOLDBOARD ASSY, Model 53

1шт.

2

780374R1

MOLDBOARD ASSY, Model 54

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4 x 2-1/4 hex-hd

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

220081

NUT

3/4 hex.

4шт.

3

780361R1

SUPPORT, moldboard assy, Model 53

1шт.

427648

NUT

1 inc. hex. slotted

4шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

3

780355R1

SUPPORT, moldboard assy, Model 54

1шт.

272081

PANEL

NUT, 1-1/4 hex. slotted

4шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

4

780341R1

CARRIER, moldboard assy, Model 53

1шт.

4

780330R1

CARRIER, moldboard assy, Model 54

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

780367R1

PLATE, retainer assy, Model 53

1шт.

5

780366R1

PLATE, retainer assy, Model 54

1шт.

6

780352R1

COVER, spindle, Model 53

1шт.

6

776064R1

COVER, spindle, Model 54

1шт.

7

780311R1

FRAME, main assy, Model 53

1шт.

7

780310R1

FRAME, main assy, Model 54

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

8

780353R1

PIN, moldboard carrier index assy, Model 53 and 54

1шт.

9

780328R1

PIN, main frame pivot index assy, Model 53 and 54

1шт.

10

780325R1

PIN, main frame pivot assy, Model 53 and 54

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

11

780296R1

FRAME, 3-pt hitch assy, Model 53 and 54

1шт.

12

780390R1

PIN, lower hitch, Model 53 and 54

2шт.

13

3057346R11

LINCH PIN

PIN, linch assy, Model 53 and 54

2шт.

14

780385R1

STAND ASSY, Model 53 and 54

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

15

520175R1

CLIP

COTTER, quick attachable, Model 53 and 54

1шт.
