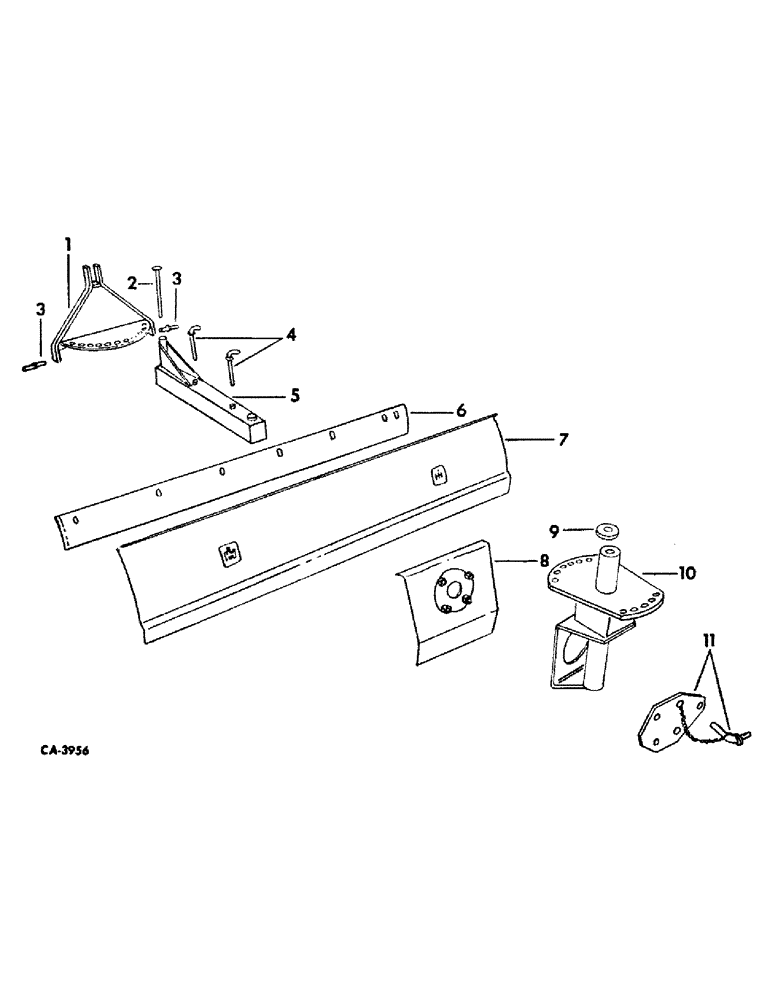

Запчасти Case IH 52 (L-5) - REAR MOUNTED GRADER BLADE, SPECIAL MEDIUM DUTY, MODEL 52

1

780752R1

FRAME, 3-pt hitch assy

1шт.

2

780765R1

PIN, main frame pivot assy

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

3

776746R3

PIN, 3-pt hitch frame cat. I

2шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 flat

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

220081

NUT

3/4 hex.

2шт.

4

780680R1

PIN, moldboard carrier index assy

2шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

flat

2шт.

5

780757R1

FRAME, main assy

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

780789R1

CUTTING, edge

1шт.

15043R1

BOLT, 5/8 x 1-1/2 short sq-nk crg

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

102639

NUT,5/8"-11, G5

10шт.

850467C1

CARRIAGE BOLT,#3, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 head plow

8шт.

7

780788R1

MOLDBOARD

1шт.

8

780779R1

SUPPORT, moldboard assy

1шт.

427642

SLOTTED NUT,7/8"-9, G5

NUT, 7/8-9 T.P.I. hex. slt

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

9

780692R1

COVER, spindle

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

13 T.P.I. Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

780768R1

CARRIER, moldboard assy

1шт.

11

780784R1

PLATE, retainer assy

1шт.
