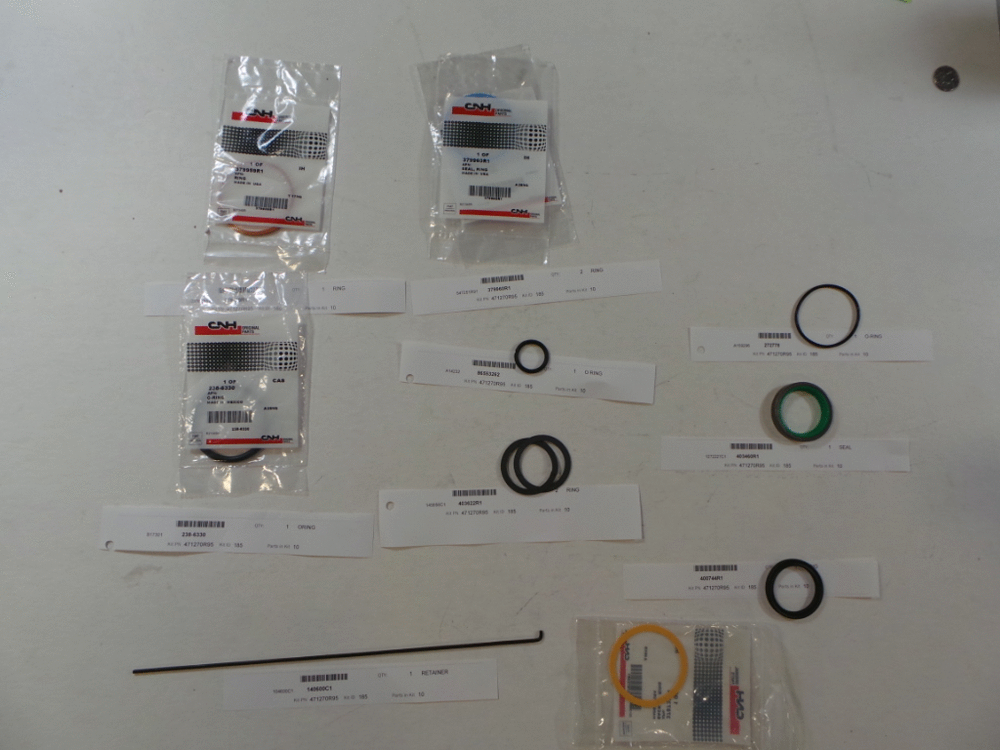

Запчасти Case IH 510 (L-7) - KIT HYDRAULIC CYLINDER SEAL

1

471270R95

GASKET KIT

Incl 2 - 11

1шт.

2

238-6330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 6, 90 Duro

1шт.

3

272778

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

4

86553262

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

5

140600C1

RETAINING WIRE

1шт.

6

378733R1

BACK-UP RING

1шт.

7

403622R1

BACK-UP RING

2шт.

8

400744R1

RING

1шт.

9

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

1шт.

10

379959R1

RING,Square, 3.17mm Thk x 58mm ID

1шт.

11

379960R1

SEALING RING

2шт.
