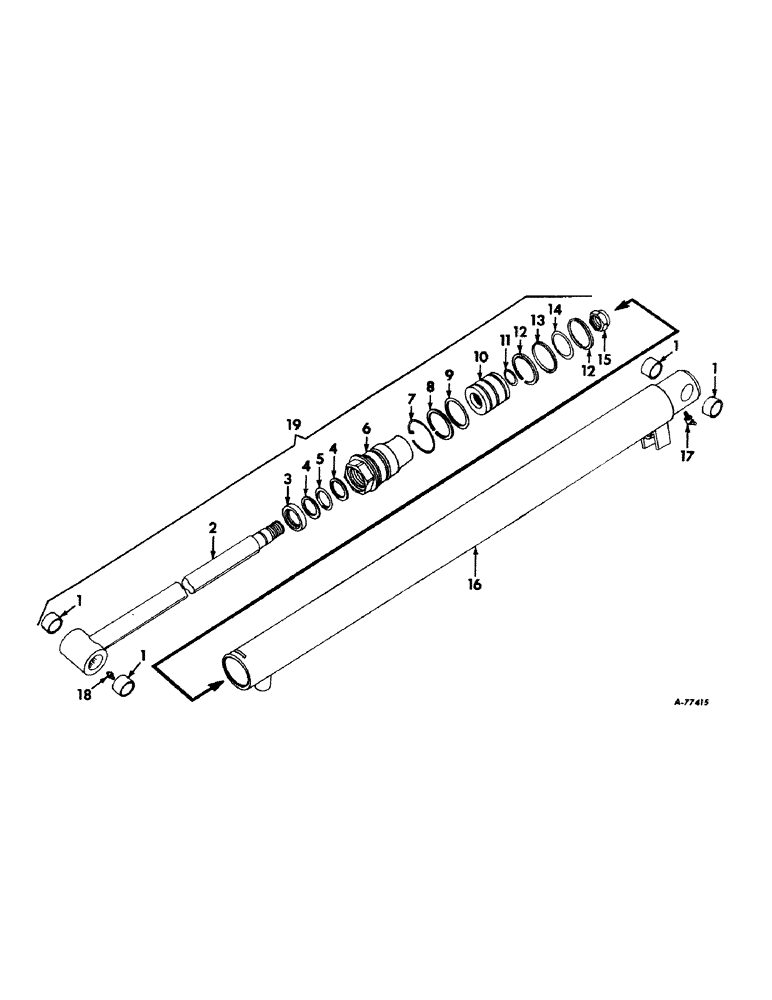

Запчасти Case IH 510 (C-4) - HYDRAULIC CYLINDER - 510 BLADE

1

378478R1

BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L

4шт.

2

386883R11

ROD ASSY, piston

1шт.

3

378736R91

SEAL

WIPER, rod

1шт.

4

378734R1

BACK-UP RING

WASHER, back up rod

2шт.

5

378735R1

O-RING,1.475" ID x 0.21" Width

1-1/2 x 1-7/8 x 3/16, Front head

1шт.

6

378536R2

GUIDE

HEAD, front

1шт.

7

385133R1

RETAINING WIRE

KEY, front head retaining

1шт.

8

378733R1

BACK-UP RING

WASHER, back up

1шт.

9

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16, Front head

1шт.

10

384129R1

PISTON ASSY.

PISTON

1шт.

11

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

7/8 x 1-1/8 x 1/8, Piston rod

1шт.

12

379960R1

SEALING RING

BEARING, piston

2шт.

13

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL, piston

1шт.

14

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32, Front head

1шт.

15

9416471

NUT

1-14 hex. lock cp-pltd

1шт.

16

386882R11

PIPE ASSY, hyd cyl

1шт.

17

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

18

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 45 deg angle drive lub

1шт.

19

386881R91

CYLINDER ASSY, hyd

1шт.

2751852R1

PRODUCT GRAPHICS, hyd cyl label

1шт.

471270R92

PACKAGE

hyd cyl service, Consists of

1шт.

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

378735R1

O-RING,1.475" ID x 0.21" Width

1шт.

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

379960R1

SEALING RING

RING

2шт.

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL

1шт.

378733R1

BACK-UP RING

WASHER

1шт.

378734R1

BACK-UP RING

WASHER

2шт.

378736R91

SEAL

WIPER

1шт.

478798R91

PACKAGE, product graphic, Consists of

1шт.

2750503R1

PRODUCT GRAPHIC

IH

1шт.

2751130R1

PRODUCT GRAPHIC

International

1шт.

2752599R1

PRODUCT GRAPHIC, Model designation (NSS)

1шт.
