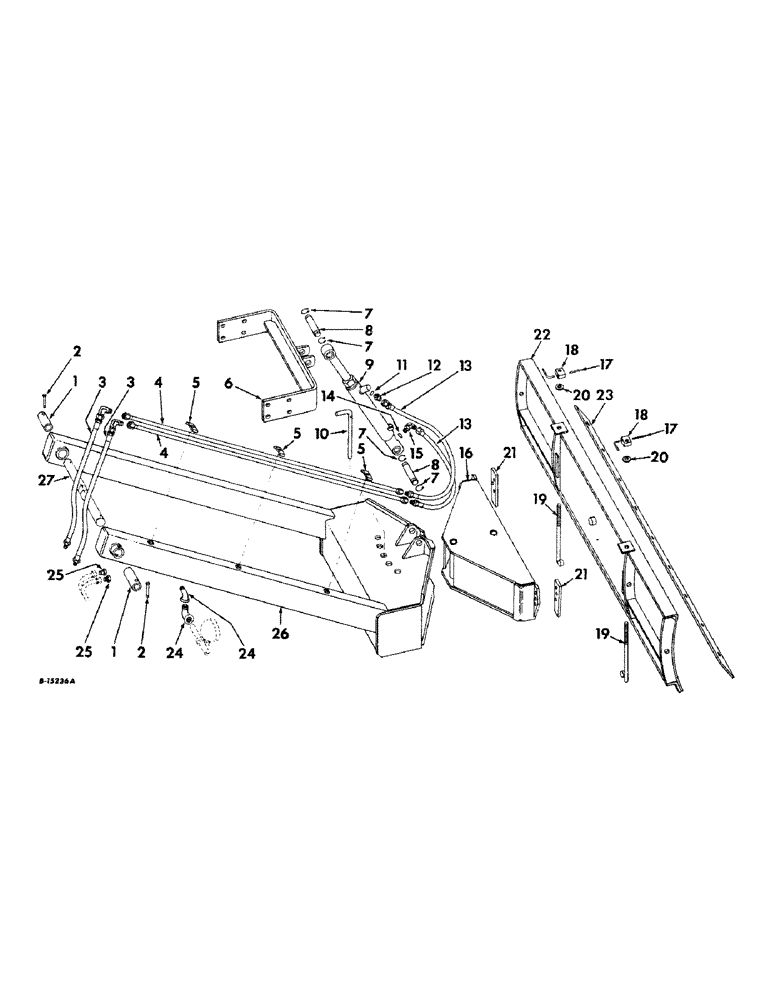

Запчасти Case IH 510 (C-3) - BOOM, BLADE AND HYDRAULICS - 510 BLADE

1

478752R1

BUSHING, spacer

2шт.

2

H7761/4

PIN, 3/8 x 2-1/2 std-hd

2шт.

137159

COTTER PIN

3/32" x 5/8"

2шт.

3

478757R91

HOSE ASSY, hyd

2шт.

4

478751R11

PIPE ASSY, boom

2шт.

5

379045R1

CLAMP

tube

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 C-Z hex-hd cap

3шт.

6

478762R91

BRACKET ASSY, lift cyl

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

454319R1

RING

external snap

4шт.

8

478424R1

PIN, cyl mount

2шт.

9

386881R91

CYLINDER ASSY, double acting, 2-1/2 x 9.60 stroke, For components see list of parts under detail of cylinder

1шт.

10

478758R1

PIN, angle lock

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga C-Z

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

12

478754R1

ADAPTER

REDUCER, hyd

2шт.

13

478756R91

HOSE ASSY, hyd

2шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

15

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

1шт.

16

478765R91

SUPPORT ASSY, moldboard

1шт.

653454R1

BOLT, 1-8 x 11-3/4 sq-hd mach

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 C-Z hex.

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

17

476817R1

ROD, handle

2шт.

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

2шт.

18

476822R1

LOCK, tilt

2шт.

19

476818R91

ROD ASSY, cam

2шт.

20

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

21

478814R1

BAR, keeper

2шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2 x 1-1/4 C-Z hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

22

478769R91

MOLDBOARD ASSY

1шт.

23

478759R1

BAR, cutting edge

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z sq-nk crg

9шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

9шт.

120384

WASHER,1/2"

LOCK, 1/2"

9шт.

24

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2 90 deg str, To relocate head lamps

4шт.

25

9403334

PLUG,7/8"-14, 37 Degree

7/8-14 37 deg hyd flared tube, For open end of un-used hyd tubes

6шт.

26

478776R91

BOOM ASSY

1шт.

27

NOT USED IN THIS APPLICATION

1шт.
