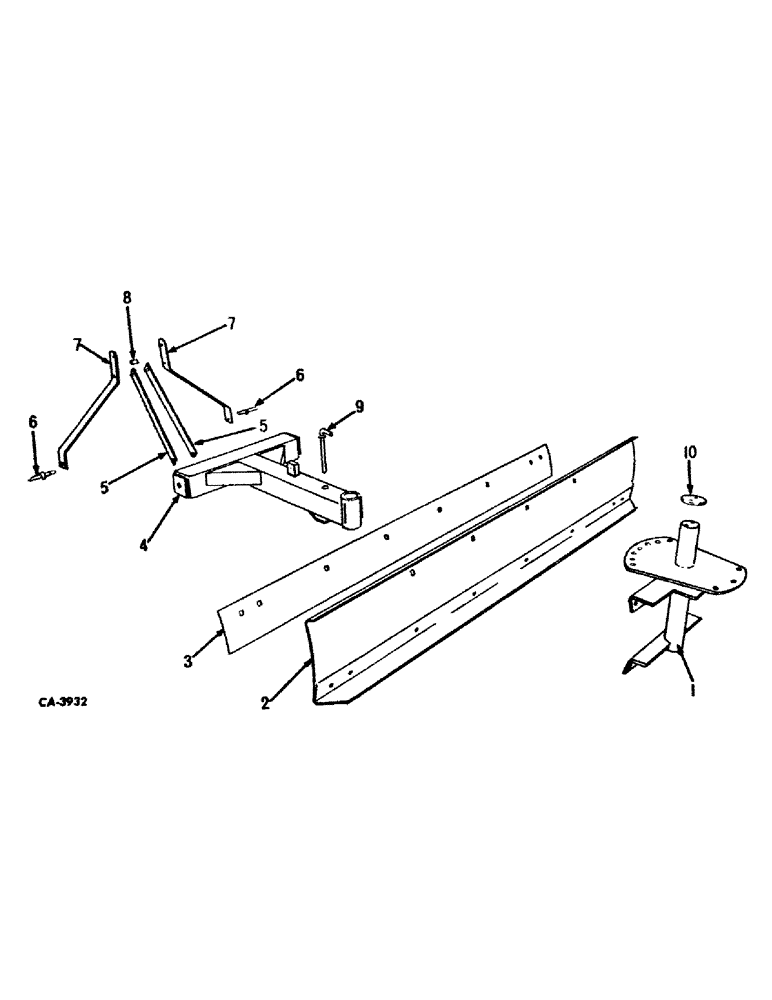

Запчасти Case IH 51 (L-4) - REAR MOUNTED GRADER BLADE, LIGHT DUTY, MODEL 51

1

780682R1

CARRIER MOLDBOARD ASSY

1шт.

2

780693R1

MOLDBOARD

1шт.

3

780694R1

CUTTING, edge

1шт.

15601R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 plow

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

102639

NUT,5/8"-11, G5

8шт.

15043R1

BOLT, 5/8 x 1-1/2 short sq-nk crg

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

4

780662R1

FRAME MAIN ASSY

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

780678R1

SUPPORT, mast

2шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8 x 2-1/2 hex-hd

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

2шт.

6

776746R3

PIN, 3-pt hitch category I

2шт.

NLS

NO LONGER SERVICED

13/16 flat

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

3/4 hex.

2шт.

7

780667R1

STRAP, upper link

2шт.

8

780679R1

SPACER

1шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 hex-hd

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

9

780680R1

PIN, moldboard carrier index CPT

1шт.

10

780692R1

COVER, spindle

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
