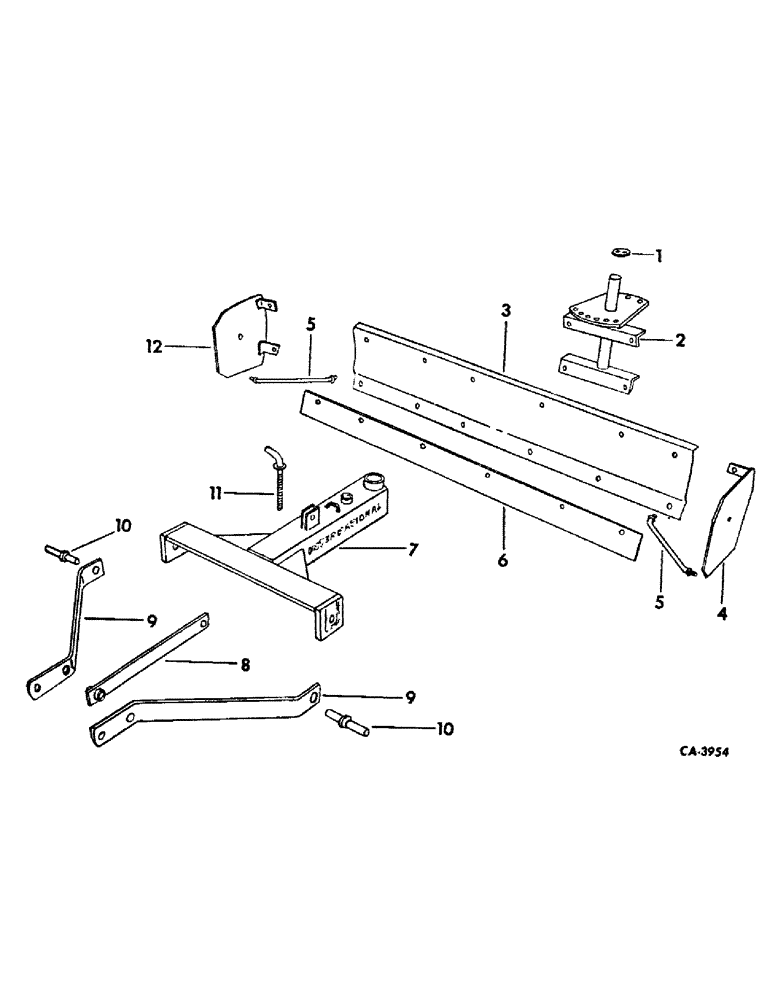

Запчасти Case IH 50 (L-3) - REAR MOUNTED GRADER BLADE, SPECIAL LIGHT DUTY, MODEL 50

1

780692R1

COVER, spindle

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

13 TPI Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

780804R1

CARRIER, moldboard assy

1шт.

3

780811R1

MOLDBOARD

1шт.

15043R1

BOLT, 5/8 x 1-1/2 short sq-nk crg

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

780813R1

PLATE, end assy, L.H., Part of attachment no. 780821R91

1шт.

15043R1

BOLT, 5/8 x 1-1/2 short sq-nk crg

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

780817R1

TIE, rod, Part of attachment no. 780821R91

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

6

780812R1

CUTTING, edge

1шт.

15601R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 head plow

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

780791R1

FRAME, main assy

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

8

780801R1

SUPPORT, mast assy

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

5/8 x 3-1/2 hex-hd, Course Threads

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 hex-hd

1шт.

9

780800R1

STRAP, upper link

2шт.

10

776746R3

PIN, 3-pt hitch cat. I

2шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 flat

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

220081

NUT

3/4 hex.

2шт.

11

780680R1

PIN, moldboard carrier index assy

1шт.

12

780814R1

PLATE, end assy, R.H., Part of attachment no. 780821R91

1шт.

15043R1

BOLT, 5/8 x 1-1/2 short sq-nk crg

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

780821R91

ATTACHMENT, end plates, Consists of refs no. 4, 5 and 12

1шт.
