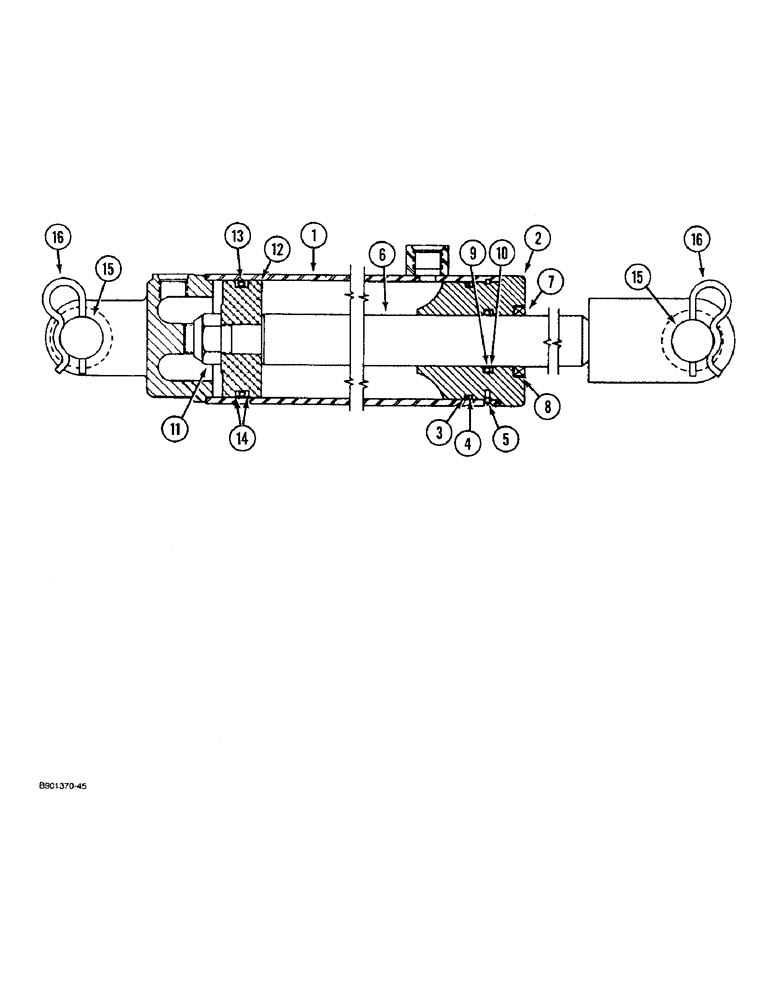

Запчасти Case IH 50 (8-12) - BLADE OFFSET, TILT AND GAUGE WHEEL CYLINDER, 60739C91, 3-1/2 ID X 8 INCH STROKE (08) - HYDRAULICS

60739C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, no longer availabe, order 1272147C91 cylinder assembly, page 8-11

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

60806C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, gland

1шт.

Part of Seal Kit P/N 547725R91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 547725R91

1шт.

5

405002R1

RING

- retaining, gland

1шт.

Part of Seal Kit P/N 547725R91

1шт.

6

547719R1

ROD

- piston

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 547725R91

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - retaining, wiper

1шт.

Part of Seal Kit P/N 547725R91

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1-1/2 inch OD, piston rod

1шт.

Part of Seal Kit P/N 547725R91

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of Seal Kit P/N 547725R91

1шт.

11

9413974

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF

1шт.

12

547724R1

PISTON

- cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 ID x 3-1/2 inch OD, piston

1шт.

Part of Seal Kit P/N 547725R91

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of Seal Kit P/N 547725R91

1шт.

15

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

2шт.

16

1970957C1

SPRING

PIN - cotter, hair type, 3/16 inch diameter

2шт.

547725R91

SEAL KIT

KIT - seal, Includes: Refs. 3, 4, 5, 7, 8, 9, 10, 13 and 14

1шт.
